Well today I have spent a few hours in the garage timing my cam in. I thought I'd write a quick guide on how to do it for those of you that are not familiar.

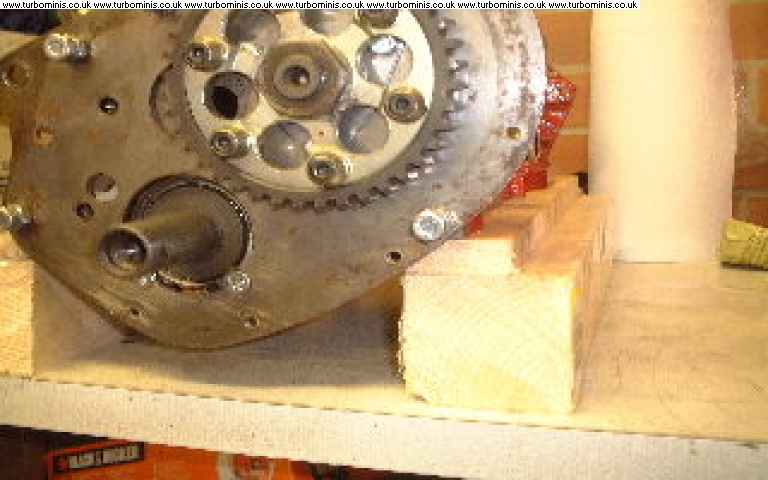

First off I made some supports to hold my engine clear of the bench to allow the crank to turn. I don't have an engine stand and I have not put the engine onto the gearbox yet hence the need to do this. I knocked these up out of a bit of timber I had in the garage.



Sorry for the poor quality, think I have buggered the pictures up when I resized them.

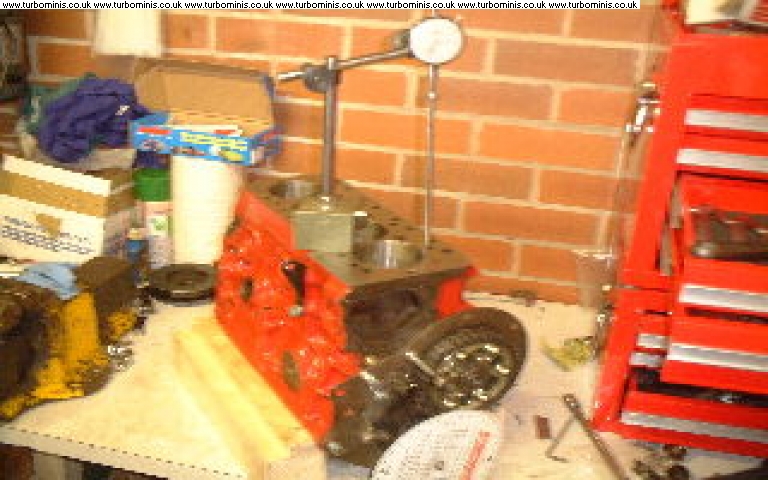

Next job I did was to check the piston to deck height while I had the clock out. This is worth doing to make sure that there is nothing drastically wrong with your build.

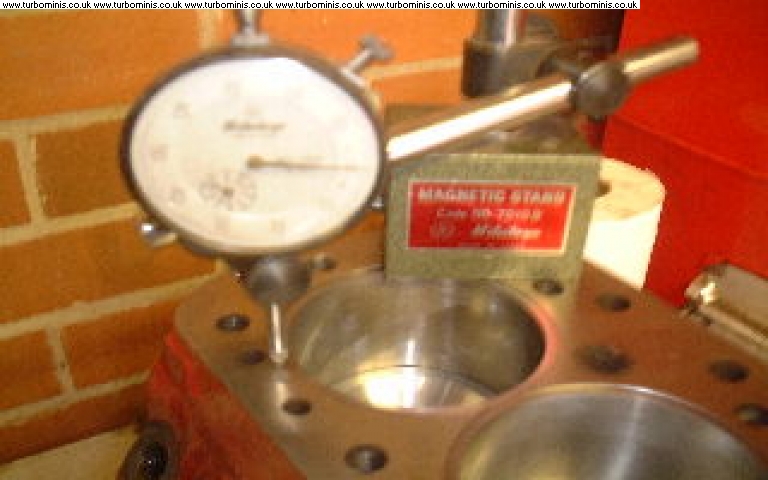

Firstly I set the clock up and zeroed it on the block deck surface.



Then I moved it to above the piston raised area, and then turned the crank till TDC was achieved on the clock. I was then able to read off the distance the pistons were down the bore.



As standard, I believe the pistons come to 40thou down the bores. My engine had the top of the block flashed to clean it, the deck height ended up at between 26 and 27.5 thou down the bores. I was happy enough that these were all close enough together.
I also checked the crank endfloat using the clock on the end of the crank nose, and lifting the crank against the thrust washers with a lever in the webs. I got 3 thou which is mid limit.
Next job was to check the cam endfloat. I did this again with the clock by placing it on the end of the cam with the nut tightened, and then lifted the cam carefully with a lever. I got 3 thou endfloat after I adjusted it, which is bottom limit.

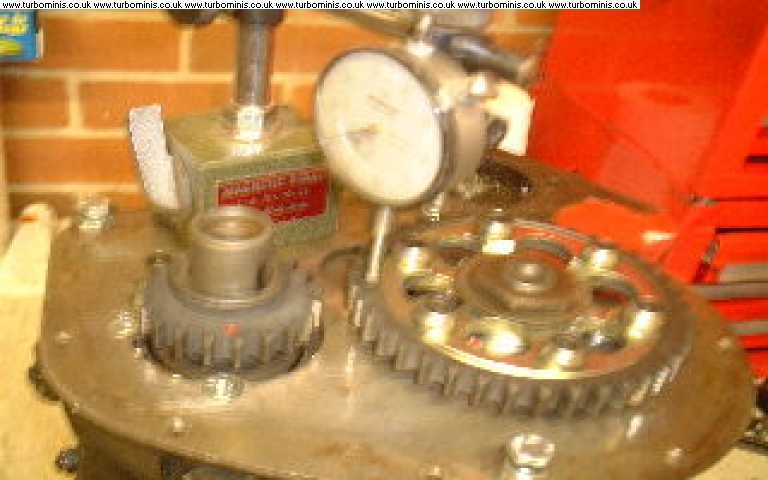

After that, I also checked the timing gears for alignment, by setting the clock up on the cam gear tooth edge, and then carefully re-positioning the plunger over the crank gear. I found them to be 30 thou out of line and so I was able to correct them to within 2 thou using selective assembly with shims.

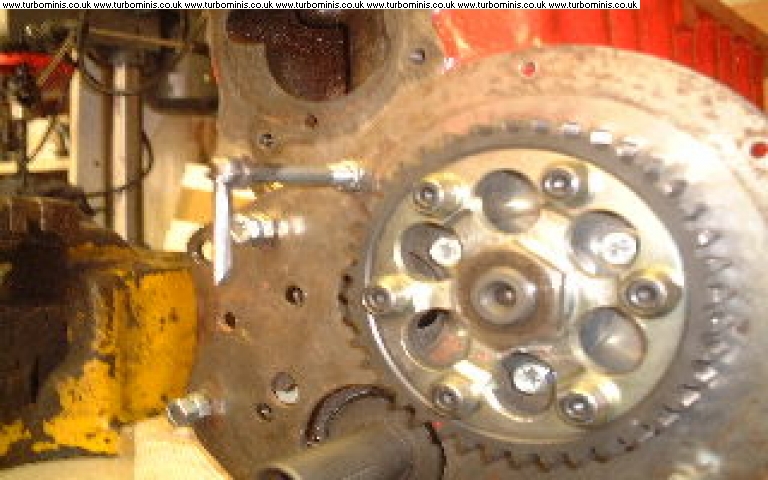

Next up was to fit my timing disc pointer. I made this some years ago by welding a piece of rod to the end of a 5/16 UNF bolt. I then filed a point on the end. The bolt is then screwed into one of the timing gear holes in the block, and a locknut used to secure it at the right length to meet the timing protractor.

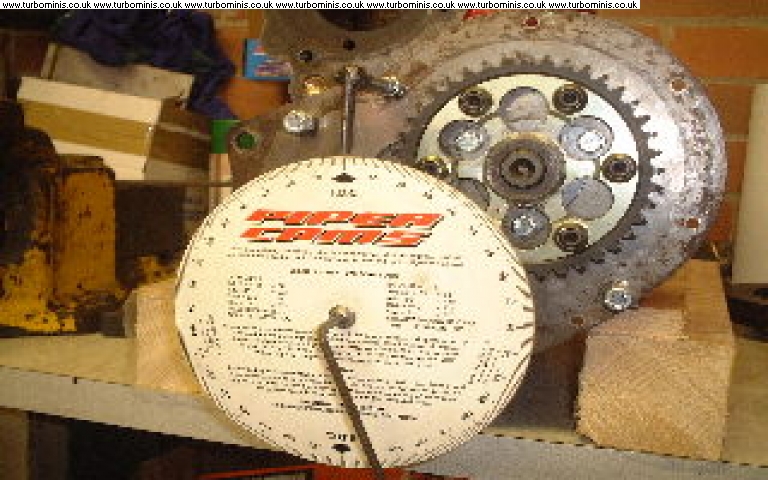

I then fitted the timing protractor. I also made this a few years ago, by drilling a 5mm hole in the end of an old crank pulley bolt, and then tapping it M6. This allows the timing protractor to be bolted onto the large bolt. Simple enough but works well, as it allows the disc to easily be adjusted.



The next step is to find TDC using the clock in a similar manner as I did when checking the deck height. This allows you to set the protractor up correctly so as it reads TDC when the engine is at TDC.

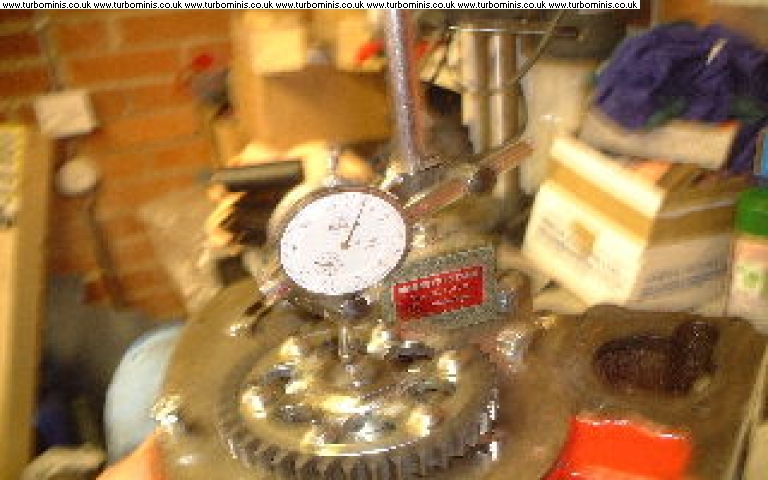

Once I had done this, I put the clock in place to measure full cam lift. This allows you to then read off the protractor the point at which full lift occurs, and hence adjust your timing wheels to get full lift where you want it. On the cam I am using full lift was recommended to be at 110 degrees. You will notice I am using a length of stainless rod down into the follwer, usually I would use a pushrod but the ones I had with this engine were fubar'd so I binned them long ago. I have yet to get any more hence had none to use to do this with! If anyones got a set of GOOD pushrods (e.g. no 'pip' on the end due to wear) they want to sell PM me!



There is a little variation to be done on most cams, as most reach full lift and then dwell for a short period, maybe 10 or 15 "crankshaft" degrees. My cam was no exception. Therefore it is needed to take a reading of when the cam first reaches max lift, turning the engine in both directions. For example, if a cam was theoretically supposed to be at max lift at 110 degrees, but had 10 degrees dwell, then you would set it so that it reached max lift at 105 degrees, and stayed there till 115 degrees, hence 110 being the mid point of the full lift period.

I have read a few other methods of timing cams in, but that is the one I use and it seems to have worked fine when I have done it in the past.

Cheers! Tom.

Edited by Tom Fenton on 13th May, 2005.


On 29th Nov, 2016 madmk1 said:


On 28th Nov, 2016 Rob Gavin said:
I refuse to pay for anything else


Like fuel 😂😂


BENROSS

User Avatar

9812 Posts
Member #: 332
Resident Cylinder Head Modifier

Mitsi Evo 7, 911, Cossie. & all the chavs ...... won no problem

also tom you could use a peice of wire say to use as a zero indicator by winding this around a bolt and bending this to point to zero.

if you dont want to fab anything.






Dr. jinG

User Avatar

265 Posts
Member #: 368
Senior Member

Roseville, CA (USA)

Tom, if you want to send me the big image files, I could host them for you for better quality... dr.jing<at>gmail.com

**************************************
1967 Cooper 's' Turbo build @ www.drjing.com


Vegard

User Avatar

7763 Posts
Member #: 74
I pick holes in everything..

Chief ancient post excavator

Norway

I cannot understand how you can masure the piston to deck height with such a device. To measure, you'll have to move it around, which cocks up the accuracy.... Or???...

On 13th Jul, 2012 Ben H said:
Mine gets in the way a bit, but only when it is up. If it is down it does not cause a problem.



iain
Site Admin

User Avatar

8506 Posts
Member #: 16
Sold the turbo and seeing what the C20XE can do!

Near Lincoln

you'd hope the deck was flat enough to do it that way. Personally id use a depth mic but cant see it being much out with a clock.


Tom Fenton
Site Admin

User Avatar

15300 Posts
Member #: 337
Fearless Tom Fenton, Avon Park 2007 & 2008 class D winner

&

TM legend.

Rotherham South Yorkshire

On 30/05/2005 08:07:17 Vegard said:

I cannot understand how you can masure the piston to deck height with such a device. To measure, you'll have to move it around, which cocks up the accuracy.... Or???...


The top of the block had been skimmed, and I set the mag stand up so that what I did to re-position it was slide it round a few degrees from the deck to the block. Not ideal like you say but it worked well enough. I also did some checks with a straight edge and some feeler blades and in all cases I was pretty damn close using my method.

Not ideal but you use what you have in these situations don't you?!


On 29th Nov, 2016 madmk1 said:


On 28th Nov, 2016 Rob Gavin said:
I refuse to pay for anything else


Like fuel 😂😂


Doodmeister

485 Posts
Member #: 149
Senior Member

Alberta, Canada

Are you rocking the piston when it's at TDC to get the average deck height or just taking the first reading. ?
Pistons rock on the little end which can lead to a false deck height reading and trouble further down the road if not check correctly. And it gets worse the older and more worn the bores get.

Two things are infinite: the universe and human stupidity; and I'm not sure about the the universe.


Tom Fenton
Site Admin

User Avatar

15300 Posts
Member #: 337
Fearless Tom Fenton, Avon Park 2007 & 2008 class D winner

&

TM legend.

Rotherham South Yorkshire

I did take it a few times to make sure, taking them up to TDC from both directions. Its a freshly bored block and new pistons so should be as good as possible at the moment (I hope)


On 29th Nov, 2016 madmk1 said:


On 28th Nov, 2016 Rob Gavin said:
I refuse to pay for anything else


Like fuel 😂😂


Vegard

User Avatar

7763 Posts
Member #: 74
I pick holes in everything..

Chief ancient post excavator

Norway

Sounds OK, I guess. I've never tried it. TBH I guess it's close enough for our crude engines anyway :)

On 13th Jul, 2012 Ben H said:
Mine gets in the way a bit, but only when it is up. If it is down it does not cause a problem.



Joe C

User Avatar

12307 Posts
Member #: 565
Carlos Fandango

Burnham-on-Crouch, Essex

I think its worth metioning that the engine turns clock wise when viewed from the cam pulley end.

Also the cam is timed in with peak lift ATDC (not BTDC like i have been trying to tim mine for the last half hour)


you'd think i'd know this the amount of cams i've timed in.... must be the thinners fumes!

On 28th Aug, 2011 Kean said:
At the risk of being sigged...

Joe, do you have a photo of your tool?



http://www.turbominis.co.uk/forums/index.p...9064&lastpost=1

https://joe1977.imgbb.com/



Rod S

User Avatar

5988 Posts
Member #: 2024
Formally Retired

Rural Suffolk

I think it's also worth mentioning, from a very recent post, that those photos would NOT have passed the "V" test *happy*

Schrödinger's cat - so which one am I ???


Brett

User Avatar

9502 Posts
Member #: 1023
Post Whore

Doncaster, South Yorkshire




On 24th Nov, 2008 Rod S said:
I think it's also worth mentioning, from a very recent post, that those photos would NOT have passed the "V" test *happy*
*happy*

Yes i moved to the darkside *happy*

Instagram @jdm_brett


Vegard

User Avatar

7763 Posts
Member #: 74
I pick holes in everything..

Chief ancient post excavator

Norway

Yeah. These are infact the most rubbish pictures I've seen in quite some time.

I demand this thread deleted. What's the point of illustrating something so badly that it only creates confusion :)

http://www.youfail.org/

Edited by Vegard on 24th Nov, 2008.

On 13th Jul, 2012 Ben H said:
Mine gets in the way a bit, but only when it is up. If it is down it does not cause a problem.



Star Mag

User Avatar

1745 Posts
Member #: 375
Post Whore

Leicestershire

Video that may come in handy!

http://uk.youtube.com/watch?v=la6-EgnCOl4&feature=related


Yo-Han

User Avatar

971 Posts
Member #: 3228
Post Whore

North of the Netherlands

I watched the Bill Sollis building "1380 A-series" DVD yesterday. He explains it well too.... (eventhough he got in trouble with which way the cam should be rotated! LOL)

Dazed and Confused....


Sir Yun

User Avatar

510 Posts
Member #: 1592
Smart Guy!

mainland europe near ze germans

point of interest. the kent double row chains can and will stretch quite a bit, as i have found out..

in this case the cam was retarded about 5 degrees, causing all kinds of grief with fuel standoff

That sir, is not rust, it is the progressive mass reduction system

http://aseriesmodifications.wordpress.com/


gr4h4m

User Avatar

4890 Posts
Member #: 1775
Post Whore

Chester

Tom, Been doing a search and reading this guide as I'm going to change the CAM in my engine for an SC specific one. A couple of questions?

- Do you DOT-to-DOT to start with to get things into sync?(I'm thinking of off set keys rather than your setup). Then take the measurements to see how far out you are? (I noticed you didn't have a chain on in the pics but it might just be the pics :) )

- How did you shim the cam for end float? under the triangle plate?

- Was the Dwell figure with the cam?


Thanks for any help.

I run a supercharger and I don't care the TB is on the wrong side.
VEMS + 12 PSI + Liquid Intercooler = Small Bore FUN!


joeybaby83

User Avatar

6274 Posts
Member #: 509
Post Whore

Isle of Man

yep, dot to dot is the usual way to timing the cam in, a bit crude though, hence the above methos for a 'degree of accuracy'

you should set the cam end float as per haynes (no idea what that is offhand)

most cams come with info re their timing

"Turbo's make torque, and torque makes fun"

"did you know you can toast potato waffles?"



Tom Fenton
Site Admin

User Avatar

15300 Posts
Member #: 337
Fearless Tom Fenton, Avon Park 2007 & 2008 class D winner

&

TM legend.

Rotherham South Yorkshire

Dot to dot is the easy way to start, then you set your protractor to your pointer and TDC, then measure where full lift is. Then you can adjust either with offset keys or vernier setup.


On 29th Nov, 2016 madmk1 said:


On 28th Nov, 2016 Rob Gavin said:
I refuse to pay for anything else


Like fuel 😂😂


gr4h4m

User Avatar

4890 Posts
Member #: 1775
Post Whore

Chester

Well timed my new cam in today. I found the attached vid very useful as I finally understood how you take the guess work out of finding the middle of the dwell, for both crank and cam

I got my offset key in the wrong way at first which was good as it confirmed all my timing figures.
The std gear was at 111, the cam wanted 106 and I got 106.5 with the key after first going to 117. so very happy chappy.

I used the TM cam timing disc worked a treat.

http://www.youtube.com/watch?v=la6-EgnCOl4&feature=related

I run a supercharger and I don't care the TB is on the wrong side.
VEMS + 12 PSI + Liquid Intercooler = Small Bore FUN!


gr4h4m

User Avatar

4890 Posts
Member #: 1775
Post Whore

Chester

Thanks again Tom referenced this guide again to time my new cam in three years to the day... Spookey?

Happy chappy again.

I run a supercharger and I don't care the TB is on the wrong side.
VEMS + 12 PSI + Liquid Intercooler = Small Bore FUN!


Turbo This..

User Avatar

1767 Posts
Member #: 9165
Previously josh4444

Australia, brisbane



On 7th Jan, 2009 Sir Yun said:
point of interest. the kent double row chains can and will stretch quite a bit, as i have found out..

in this case the cam was retarded about 5 degrees, causing all kinds of grief with fuel standoff



nice guide shall be handy when im ready for its nice that people on hear take time to do these things

i have also found a new chain to grow after about 70,000KM 4 years of abuse i couldn't get it to knock at all might have also been due to a low compression build but still..

Edited by Turbo This.. on 11th Mar, 2013.
