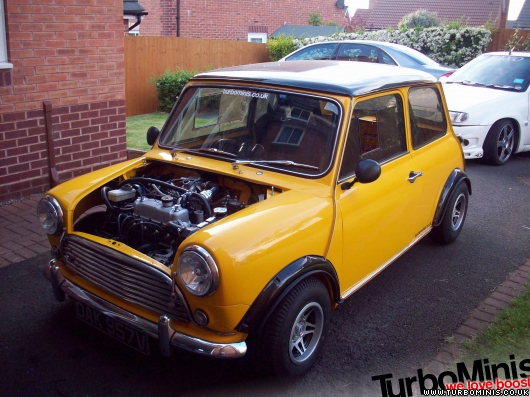

My Mini Turbo Project, this car has been rebuilt from the ground up using either brand new or high quality second hand parts. I’ve built this car over a 6 year period and everything has been painstakingly removed, improved and replaced. Just about every nut and bolt has been renewed. The car has done less than 2 miles since completion, including the engine. The must be close to concours standards. The car is fully operational and drivable with all electrics working.

Please ignore the number plates in the photes, this is a plate i have on retention and was planning to use it on the mini. The car with come with the shells original V5, which would put it on a D plate.

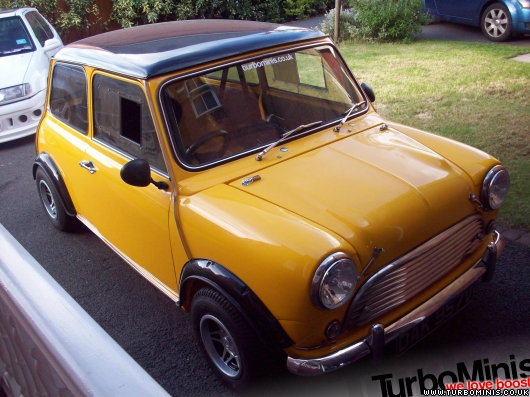

Bodyshell
Originally a 1987 Park Lane in Black.
All rust removed and replaced with new panels
Full bare metal respray in AA Landrover Yellow
Respray includes underside (stonechipped first) inside, under bonnet and inside the boot
New Steel front end – including 2 wings, 2 a-panels and front panel
Inner wings removed and brace bars fitted
Inner and outer Sills replaced
Driver’s side door step replaced, including bottom section of rear quarter panel
Both rear arches replaced

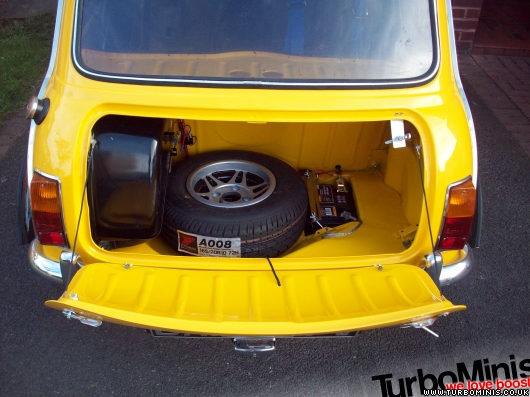

Full boot floor replacement
Rear valance and both corner closing sections replaced
Rear Bins and seat Swab removed
Turbo Bulkhead box fitted
Additional Box fitted above Bulkhead box for additional clearance
New 6 Point Bolt in roll cage in Black
Doors are lightened, inner panel and window mechanism removed
New door seals
Polycarb tinted windows all round (except windscreen) with sliders in doors
New Tinted windscreen fitted
New Window seals and Chrome inserts all round, including rear opening quarters
This car has had not patching; if the panel was rusty it has been cut out and replaced
Fibreglass Mk1 style KAD
New Mk1 Moustache and moustache ends
New Mk1 Wide Slat Chrome Internal release Grill
New Chrome Bumpers and over-riders Front and Rear
New Fibreglass Mk1 Style Bootlid with Correct number plate carrier
Mk2 Rear lights
New Crystal Halogen Headlights
Clear front indicators with orange bulbs
All new bright work, including door handles, light surrounds etc
Motor bike door mirrors in black
New Wide Group 2 Arches in Black

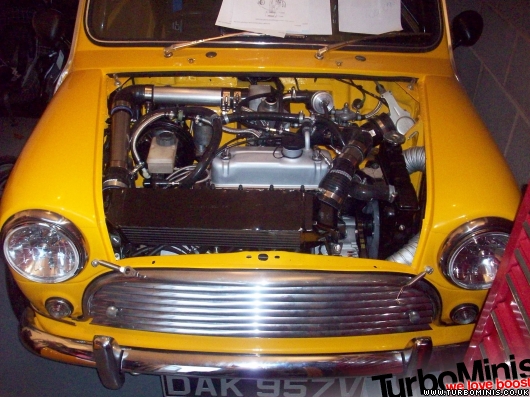

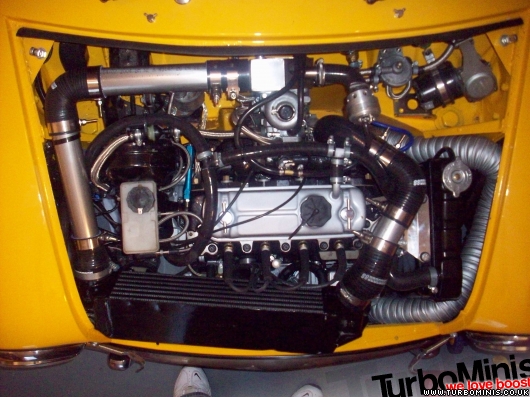

Engine and Gearbox

The engine has been built over the last 12 months; the engine starts first time and boosts, the engine still requires being run-in and setting up on a rolling road.

1293 A+ Block with fresh rebore
Turbo Crank Lightened and Balanced
Standard Conrods Lightened and Balanced
New Turbo Pistons with 14cc Dish
New Morspeed 11 stud Turbo Head with 29cc Chambers
New ARP bolts used in Head and Conrods
New Phase 2 Avonbar Camshaft and Heat Treated Followers
New Alloy Vernier Pulleys, duplex chain and new tensioner
Lightened Flywheel
New Grey Diaphragm
New Paddle Clutch plate
New clutch master cylinder, new slave cylinder, new clutch arm and braided hose
New release bearing
New Straight Cut Gearbox, using a clubman gear set
New Timken Roller Bearing Straight Cut Drops
New Kad Internal Gear Linkage and Quickshift
New front mounted 10 Row Oil cooler
New KAD adjustable oil pressure regulator
T3 Turbo
Braided turbo oil feed
New Avonbar 12psi Actuator
New Avonbar Dump valve
Benross Machined Exhaust Elbow and Manifold
New Metro Turbo Downpipe, fitted with Lambda sensor
New Maniflow 2 inch Turbo Exhaust.
Rebuilt Turbo Carb, with Needle and spring for 12psi (New from Avonbar)
Large front mounted intercooler, with silicon and stainless steel pipe work
New Nic R Stainless Steel Plenum Chamber
New Fuel Pressure Regulator
New Braided Fuel Pipe throughout.
MPi Fuel Tank
New MPi Fuel Pump and Sender
Fuel Pump wired with inertia cut-out.
New Water pump and fan
New Minispares 2 Core radiator
New KAD top engine Steady
New Avonbar Ultimate Water pump top engine steady
New KAD Lower Gearbox Engine Steady Kit
Denso (Small) alternator
New Stainless steel catch tank.
Crank, timing cover and rocker cover breathers

Ignition

Full Mega jolt system, with basic Turbo Map
Edis and coil pack
New Tom F Machined Crank pulley and sensor bracket.
New HT Leads
New NGK BP8ES Spark Plugs

Suspension and Steering

Front subframe shot blasted and painted black
New Rear Subframe
New Quickrack
New Track rod ends
New Ball Joints
New Wheels Bearings Front and rear
New Inner and outer CV joints
New adjustable Hi-Los Front and Rear
New Gaz Lowered Adjustable shocks Front & Rear
New KAD adjustable rear camber brackets
Standard rear radius arms with new bushes and rubbers
Adjustable, rose jointed front tie rods
Adjustable, rose jointed font lower arms

Wheels & Brakes

Set of 5 KN Mercury Alloy Wheels with New Yokohama A008 Tyres
Brakes are Servo assisted, with braided hoes from master cylinder to bulk head regulator
Minisport Alloy 4 pots
New Vented Discs machined to 7.9inch
Braided hoses Front and Rear
All new copper pipe used, with main run inside the car
New Wilwood internally mounted adjustable brake bias
Original Minifin Rear Brake drums
New Rear back plates
New rear cylinders and shoes
New Handbrake cable
New Rear KAD handbrake Quadrants
New Kad Fly-off handbrake

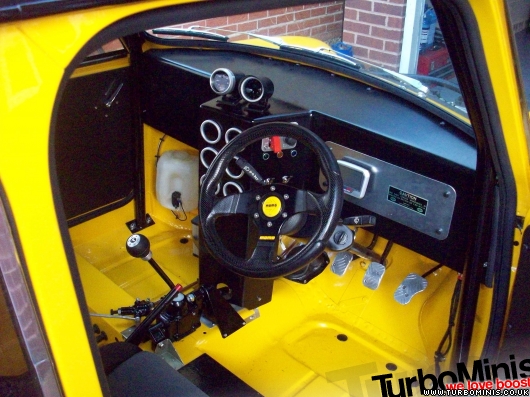

Interior

New Wiring Loom
Momo Steering Wheel
New Momo Gearknob
Fibreglass dash in black
Cobra Imola 2 Seat in Black/Grey
Luke 4 Point Harness
New Black headlining
New Acewell Digital Speedo and Fuel Gauge (modded to work with Mini sender)
New Auto gauge Black-out Dials
Turbo Boost
Oil Pressure
Oil Temperature
Water Temperature
Fuel Pressure
Rev Counter
Voltmeter
New AEM AFR gauge
New Aircraft Style Ignition and starter

Other

New old stock Wiper motor
Chrome Wipers, nozzles and blanking plates
New Peugeot 306 diesel battery

Bad Points

Turbo smokes a bit
Needs new choke cable
Indicators flash a bit slow
Wiring behind the dash is a bit untidy

Things left to do

Replace choke cable
Tighten up roll cage
Set engine up on rolling road
Set suspension up
Get MOT

I want £4800 for the car; please don’t ask for individual parts at this point as I will not split unless I have a buyer for the shell.

There is a genuine reason for the sale which is based on a personal change, the change is not financial based and I’m not in a hurry to sell.

I’m based in Worksop (S81) which is between Nottingham and Sheffield. You will need a trailer to remove the car.

Please PM me with genuine interest.







[imghttp://www.turbominis.co.uk/uploads/i/wh530-oe1-at1/dicanio-1727.jpg[/img]










Apologies for the long post, but I feel the car deserves a good write up.

Edited by Dicanio on 23rd Nov, 2009.

lovely car mate , good luck

lovely car mate , good luck
:cool:

thats really nice and clean mate, looks well too...

Yes i moved to the darkside

Instagram @jdm_brett

Reminds me of JF's MOT???L

On 5th Sep, 2011 Vegard said:
I stand corrected. You should know

Cracking motor...will agree with scruffy...it does look like MOT. :)

Well, it's sold to a member of the forum.

I'll let the new owner reveal his identity if he so wishes!!!

weeeeeeeeeeeeeeeeeeeee!
cheers mark will sort pick up asap !

Congrats on the new purchase! I'm not surprised it sold so quickly given how clean it is

On 12th Nov, 2009 Paul S said:

I think Gary OS has taken over my role as the forum smart arse

cant wait to see it in the flesh!

Well Mark I must say it seems a shame for you to get so close and sell up, but I guess it must be the right decision for you. Steve good luck with the car.

thanks tom, mark said you might be able to help get it back to essex?..lol
for beer tokens of course

I know but I just don't get the time, life has changed quite a bit for me since I started it and it seems more of a shame it just sat in the garage.

Hopefully Steve will take it those last few step, get it finished and use it like it was intended. It really shouldn't take much to complete, just iron out those fresh build bugs.

I don't think I expected it to sell so quickly and I'm sat here tonight with a bit of a stange feeling, but Im really pleased it's going to someone on here and that he seems to be intending to finish it, rather than break it.

not breaking it and as i,m know nothing about turbo A series , hopefully the guys will keep an eye on me, and when it finished my you can meet me and give it a good thrashing !
the car that is
steve

Yes, Hopefully Steve can continue the excellent work. Hope your plans work out Mark, Good luck both of yers!

977....

Nice looking car, hope it gets the attention it deserves by the new owner.

JF.

it will JF , just need to get it home first..lol
