Hi guys.

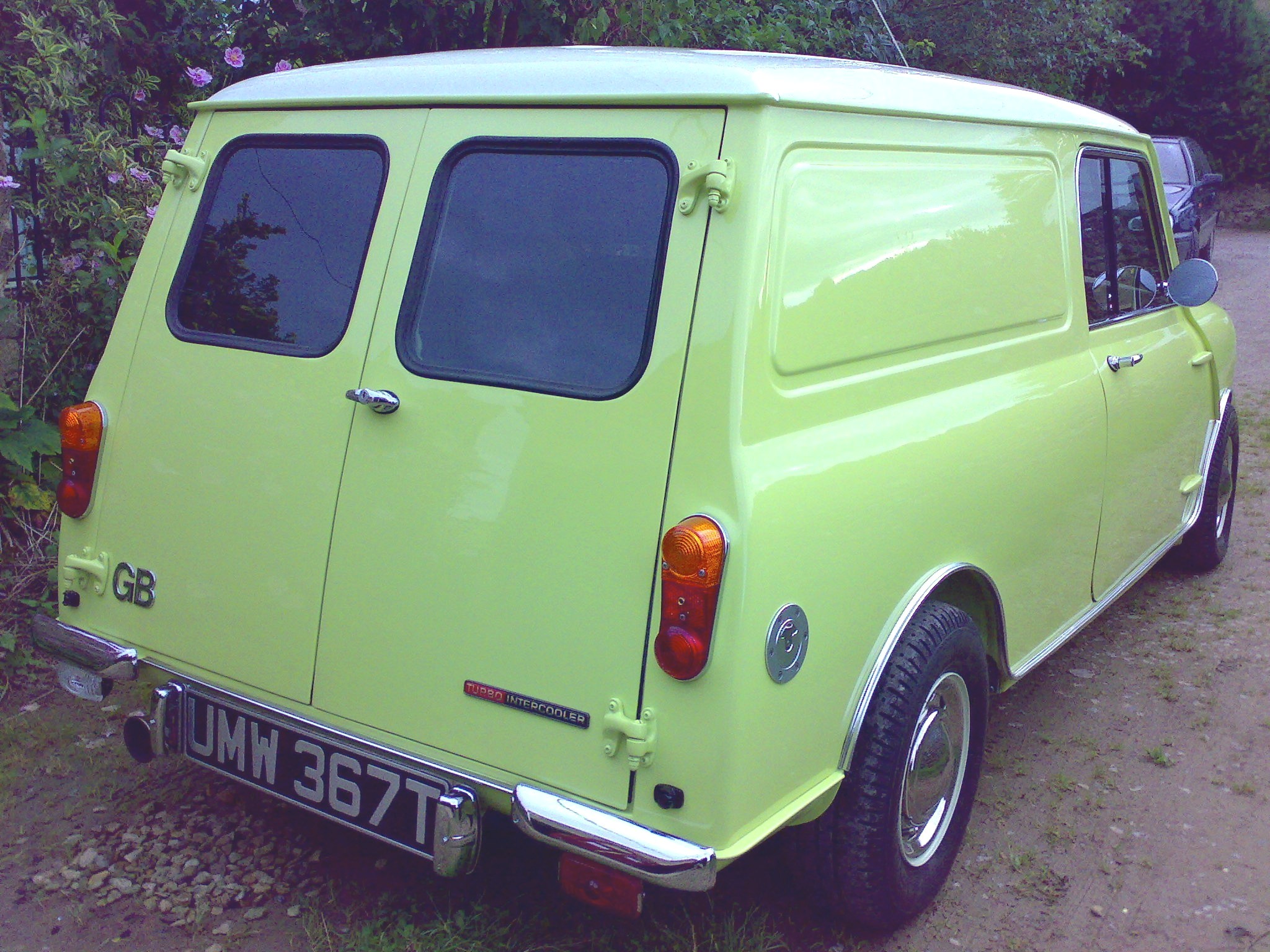

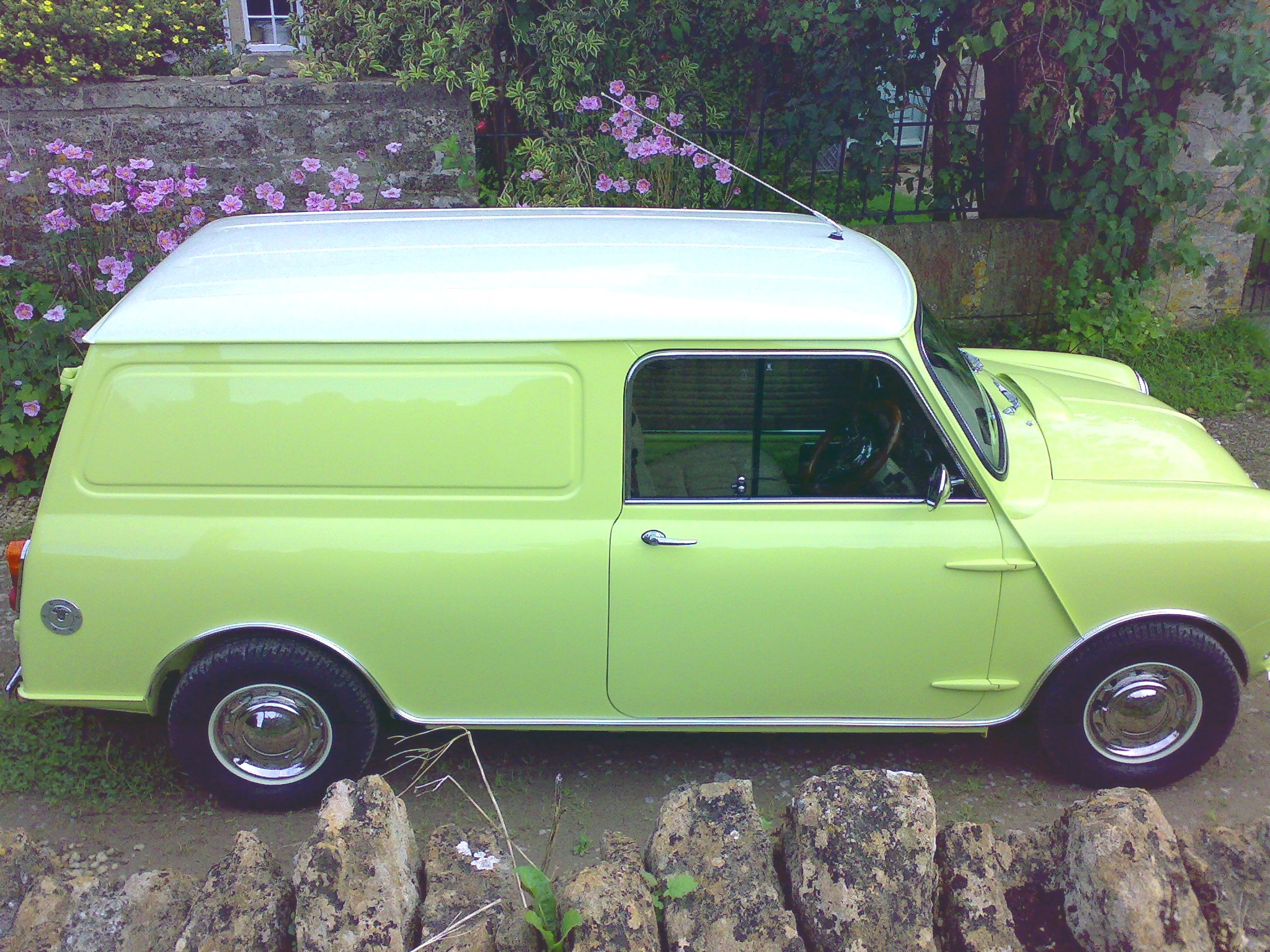

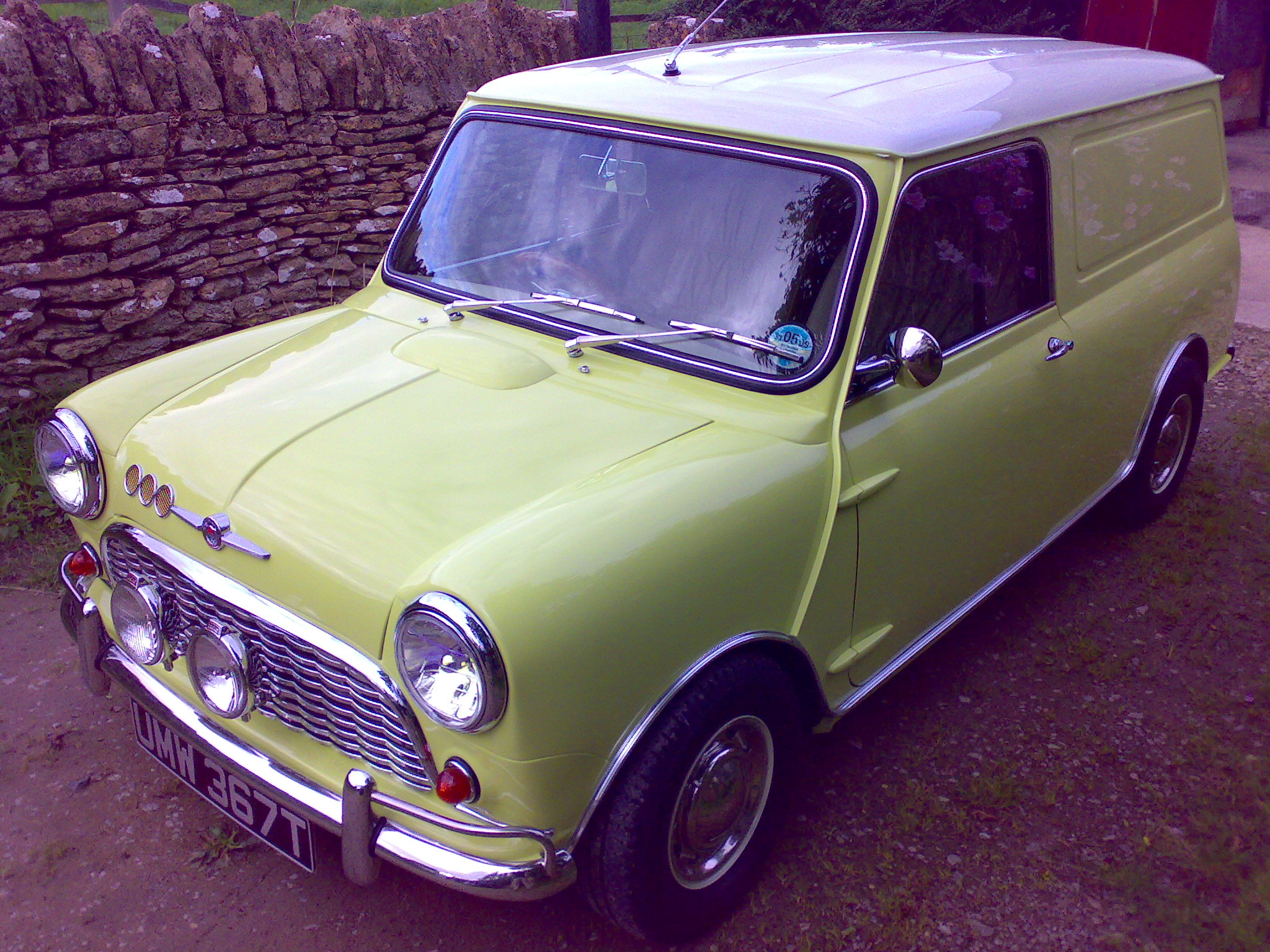

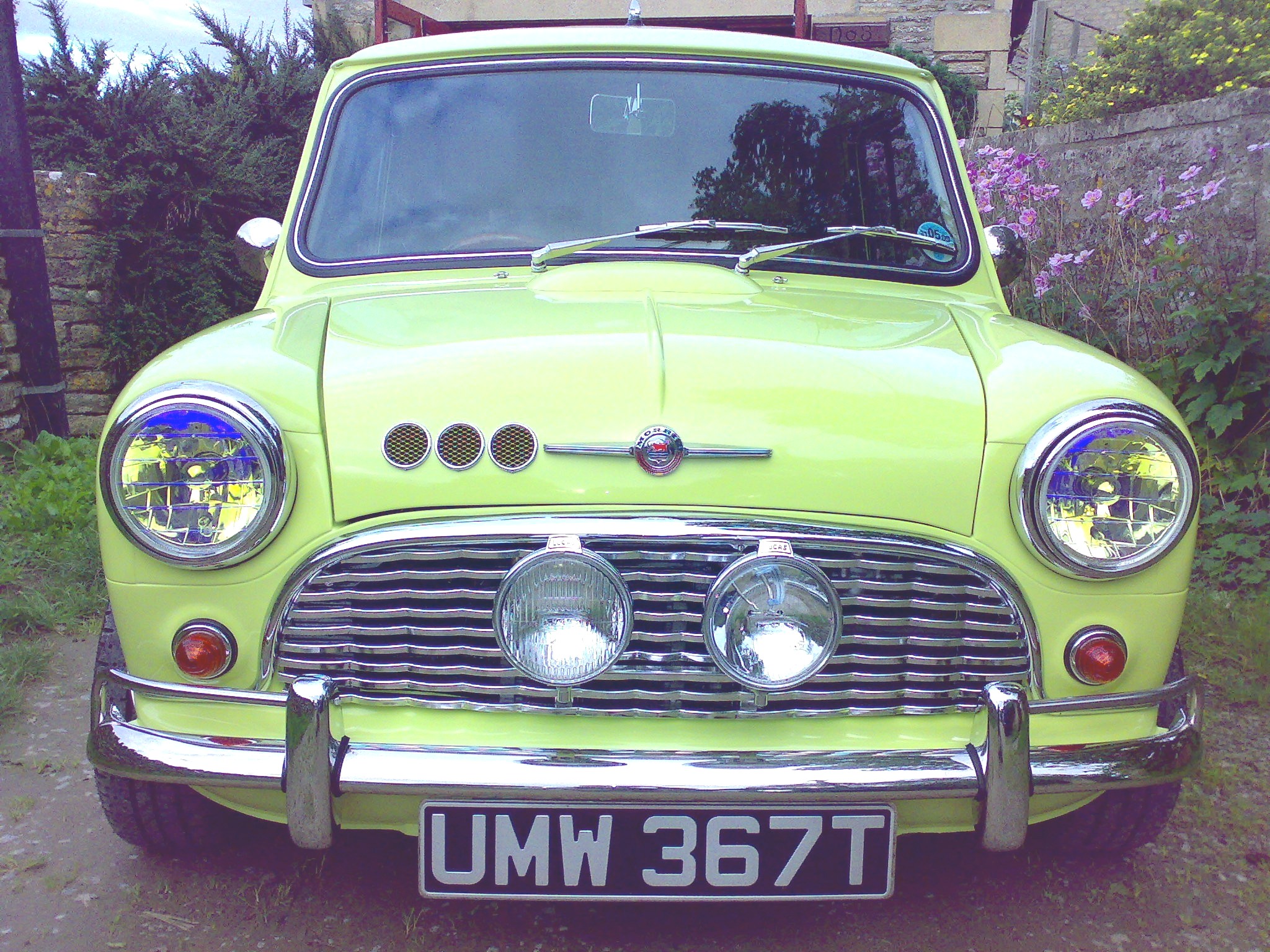

Bit slow at doing this but the van is now finished and has been on the road for a few weeks so I thought I'd post up some pics (might be a few posts as there are a about 16 pics).

Also, many thanks to those on TM that have given me help and assistance with my MS installation particularly when I had misfire problems (sorted in the main by fitting a 20 micro Farad capacitor on the live feed to the coil pack).

As for spec:

Modified MT Garret T3 Turbo, 360 degree job, currently running 16 psi with water injection and knock retard on a Megasquirt 1 v3 ECU with 21 psi MAP sensor.

AP2 cam, belt drive, MED wedged, bladed crank, straight cut Tran X box and Tran X 4 pin diff, MT verto flywheel (with a mod I did myself to increase spring stiffness), centre main strap.

Omega pistons with 8.1 static CR, new MPi head (beak removed), reshaped chambers, tunnel ports, 6 mm 36 x 31 valves (cut by the now defunct Honeycrock Racing), Avonbar 1.5 Forged rockers, 10 mm ignition leads, Ford Wasted Spark coilpack, 36-1 VR crank sensor, MPi/SPi Air and Coolant sensors, self made plenum (using Meastro/Montego N/A as basis), dump valve, 37 mm carb throat restrictor, solid jet holder, modified needle.

Ford Series 1 RS Turbo intercooler, self made stainless intercooler pipes, MT Aux water rad and NMocal 10 row oil cooler, water injection tank below alternator.

To ensure engine health I've fitted: a GReddy Profec 2 Boost Controller, AEM Wide Band AFR, analogue boost gauge, oil press/water temp gauges, oil temp gauge, tacho, intercooler delivery temp gauge. All housed with relays and fuses in LH and RH glove boxes.

Just need a bit of fettling with spark and fuel and she'll be ready for her second visit to the dyno.

I've heard good things about Stuart Gurr at VMax. I live near Bath, what do you guys recommend ?

Cheers guys.

Richard.

Attachments:

788.42kb

692.84kb

924.71kb

848.51kb
