K1100 16V Turbo build...now transmission build.
Turbo Mini Forums

Hey matty,,, I don`t mean to be sounding like i`m as blind as a bat, nor do i want to look like i`m a know it all,,, but purely because i couldn`t see the back side of your front engine plate, i`m wondering if you`ve allowed a recess in the back of it for oil drain from the cam thrust plate down to the front main cap???

But apart from that, it all looks the goods & well done for getting on with doing it yourself, it`s not the easiest conversion without CNC etc hey?

www.miniman.com.au

"""LazyGoodForNothingSmartArseKnowItAllBackYardMiniMechanic"""

Hmm, never thought of that, but the original steel plate was flat at the back and I used that as a template.

Wouldn't the gasket between the back plate and block allow enough room for oil to flow back?

Im not 100% certain on where you mean? Any pictures?

Its taken a while without a CNC, but ive broken the back of the machining side now..thank god!

https://www.facebook.com/pages/Fusion-Fabri..._homepage_panel

www.fusionfabs.co.uk



1/4mile in 13.2sec @ 111 terminal on 15psi

Yeah,,, not sure how thick your gasket is, but i just machined the back out of mine to give it plenty of oil drain. Oil gets splurted out from the front cam bearing, past the cam thrust plate (the triangle looking bolt up plate thing) & it needs to drain away from there easilly & the factory let it through the timing cover where the gears & chain normally are,,, & it`s allowed back into the donk through 2 holes in the front main cap,,, but if you fit a flat plate right across the front of the block then there`s no where for it to go anymore. Go Check it out... you will see what i mean.

www.miniman.com.au

"""LazyGoodForNothingSmartArseKnowItAllBackYardMiniMechanic"""

Thats a damn good point Matt... I think I may be milling out a slot this week then!

Cheers for the contructive comments, that could of saved me from having a leaky seal. :)

Would you say a passage 10mm wide by 2mm deep would be sufficient?

https://www.facebook.com/pages/Fusion-Fabri..._homepage_panel

www.fusionfabs.co.uk



1/4mile in 13.2sec @ 111 terminal on 15psi

All these Mattys around these days , i`m gettin confused

Cheers Matty, Allways like to lend a hand (or a thought) where i can & i`ll try to post a pick of the back of one of my plates tonight for you.

& TurboDave,,, you gettin all snotty in your old age? pickin on the young fellas now ey? Ya big Bully

www.miniman.com.au

"""LazyGoodForNothingSmartArseKnowItAllBackYardMiniMechanic"""

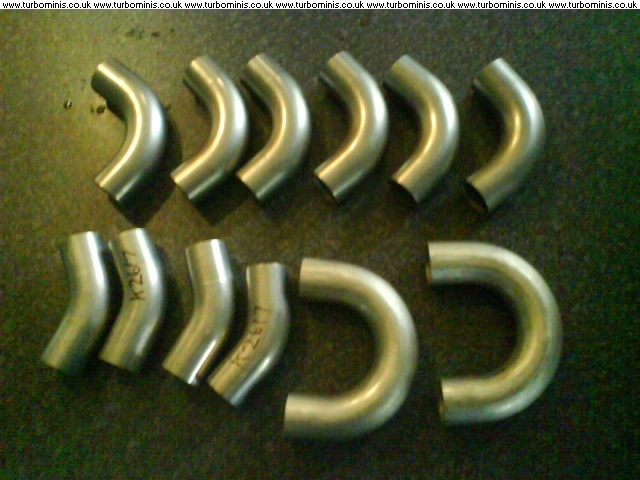

And so the fun begins....

https://www.facebook.com/pages/Fusion-Fabri..._homepage_panel

www.fusionfabs.co.uk



1/4mile in 13.2sec @ 111 terminal on 15psi

I saw this at the weekend, a top piece of engineering going on (not that i really know what im looking at)

Itll be good

Lol, you must of still been drunk on Sunday!

https://www.facebook.com/pages/Fusion-Fabri..._homepage_panel

www.fusionfabs.co.uk



1/4mile in 13.2sec @ 111 terminal on 15psi

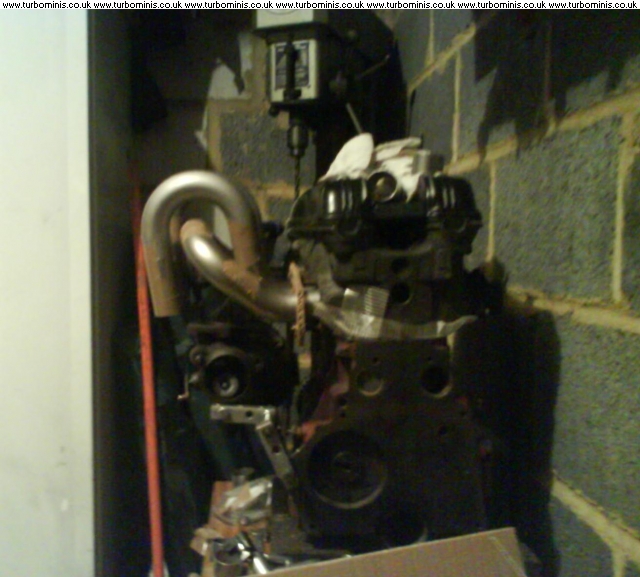

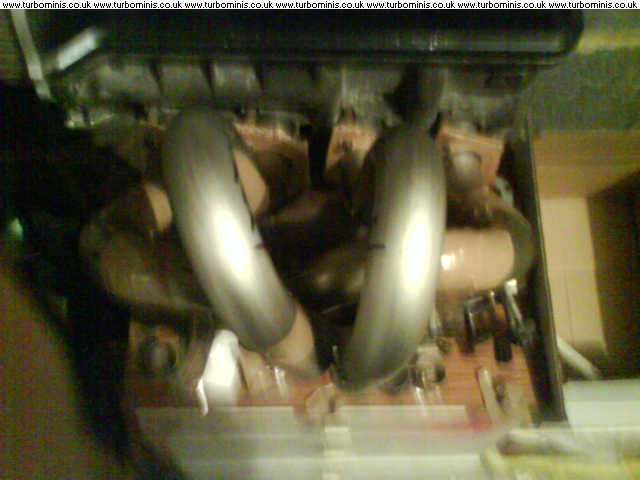

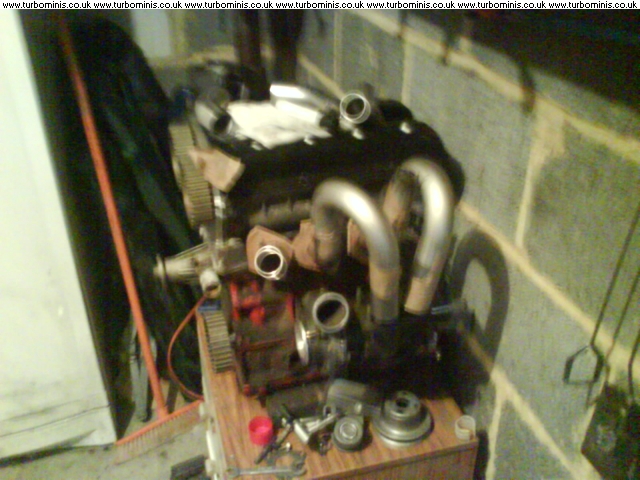

Ive been busy this evening....

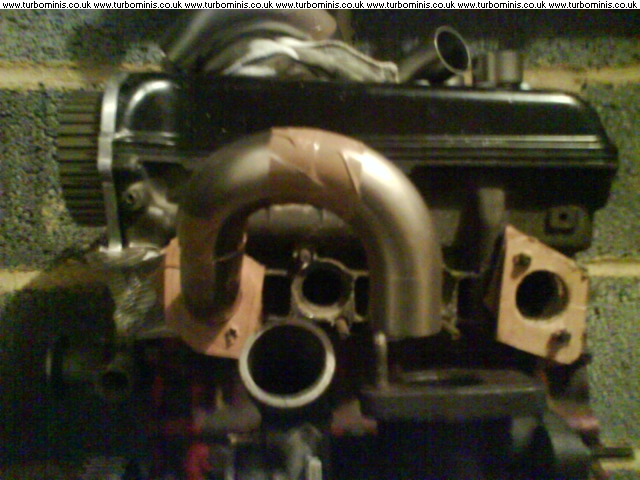

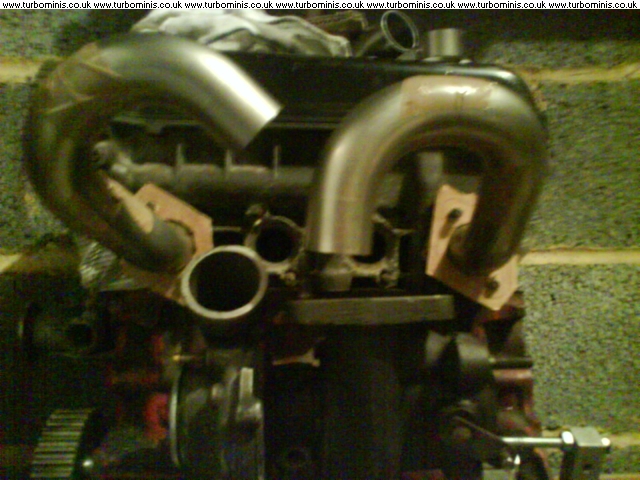

Both end pipes are the exact same length, as I have now moved the turbo inlet into the centre of the head. Just need to work out a way to cut the pipes at the end for the collector.

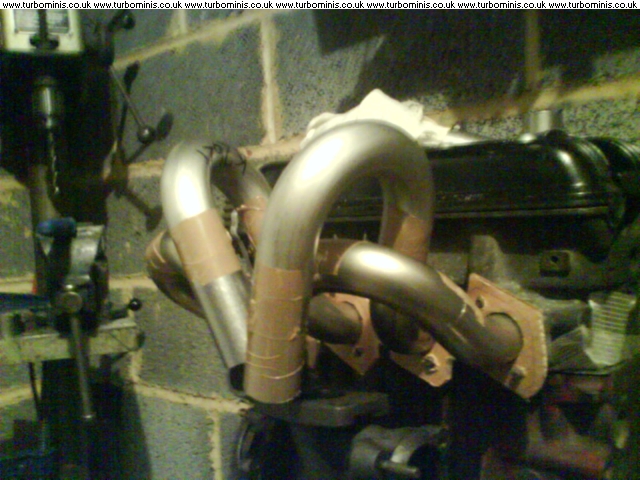

This as far as ive got today, the centre pipes need to be shortened to make them the same length, but I thought I'd quit while I was ahead for today..lol

https://www.facebook.com/pages/Fusion-Fabri..._homepage_panel

www.fusionfabs.co.uk



1/4mile in 13.2sec @ 111 terminal on 15psi

Nice!

another great example of CAD...

Cardboard Aided Design.

nice job matt cracking on with it really well !!

Medusa + injection = too much torque for the dyno ..https://youtu.be/qg5o0_tJxYM

You can't beat a bit of CAD...lol

Anyone know of a good way to cut out the pipes like this?



Im not to sure how to measure it, or if its just a case of trial and error?

https://www.facebook.com/pages/Fusion-Fabri..._homepage_panel

www.fusionfabs.co.uk



1/4mile in 13.2sec @ 111 terminal on 15psi

Looking good, you sure have been busy.

I dont think that packaging tape will take the heat

Looking good you turbo fibber!!

Back once again like a renegade master

looking good mate

Team www.sheepspeed.com Racing

theres prob a special tool matt ,an angle pipe cutter or some such ,but a vice and a hacksaw and a bit of thought should get you there .

Medusa + injection = too much torque for the dyno ..https://youtu.be/qg5o0_tJxYM

I use those 1mm thick stainless steel cutting discs in the angle grinder.

Saul Bellow - "A great deal of intelligence can be invested in ignorance when the need for illusion is deep."
Stephen Hawking - "The greatest enemy of knowledge is not ignorance, it is the illusion of knowledge."

I used 1mm SS cutting discs to do that - the first pipe is tricky but then you know how to do it....

Bimmer Twinky headed and turboed A-Series:
http://www.minifreunde.at/harry/projects.htm

Cool, I'll give that a go. I'll have to get all the flanges sorted first and it all tacked up first...so got a little while yet before the dreaded collector!

https://www.facebook.com/pages/Fusion-Fabri..._homepage_panel

www.fusionfabs.co.uk



1/4mile in 13.2sec @ 111 terminal on 15psi

Looking amazing matty , rather you than me tho with that manifold.

Matty,

If i was doing a minifold of that style i would bring the 4 pipes together with flat ends, blank the middle with a peice of flat, then fill in the outsides so you get a square wit rounded corners, then squish a cone into a square and weld it on.

....go's and does a web search when realises he can't explain very clearly....

sort of like this.

http://images.google.co.uk/imgres?imgurl=h...K%257CcountryGB

but i was thinkin more of a cone like the one these sell

http://www.dynoflow.co.uk/dynoflowfabrication.html

found this whle searching too, like the 5-1 collector!

http://forums.hybridz.org/showthread.php?t=116979&page=3

some nice engineering, but 316 stainless

Itll work sprocket. Stop putting doubts in peoples heads.

Back once again like a renegade master

MMJ

Matty is using 304, not so bad, not ideal, but 321 347 and 310 are a right bastard to get in this country so 304 is an absolute minimum.

Dont understand it as those guys on that forum are in America, and you only have to do a search for aircraft exhaust suppiers to find all the 321 mandrel bends you would want.

316 on a HOT 900c turbo manifold is in my opinion not such a good idea
