reading this thread i now realise how little room i have for the turbo and the actuator. my car is a LHD.
there is nothing wrong with a A-series that a turbo can't fix.
|
||||||
|
Forum Mod 10980 Posts Member #: 17 ***16*** SouthPark, Colorado |
21st Dec, 2006 at 10:58:54pm
http://www.geocities.com/jharkola/1380turbo5.html
On 17th Nov, 2014 Tom Fenton said:
Sorry to say My Herpes are no better Ready to feel Ancient ??? This is 26 years old as of 2022 https://youtu.be/YQQokcoOzeY |
||||||
|
Site Admin  8506 Posts Member #: 16 Sold the turbo and seeing what the C20XE can do! Near Lincoln |
22nd Dec, 2006 at 09:52:55am
other option is mirage manifolds |
||||||
|
282 Posts Member #: 1404 Senior Member The Netherlands |
22nd Dec, 2006 at 06:59:56pm
@Turbo dave: i saw the link before. but now i see that he started without the servo. so i will swop from servo to non servo brakes first. so when it's time to make the turbo box i see what i cab cut away.
there is nothing wrong with a A-series that a turbo can't fix.
|
||||||
|
282 Posts Member #: 1404 Senior Member The Netherlands |
25th Dec, 2006 at 12:10:25pm
i knew that someone had a turbo in his lhd. so i emailed i's and this what i got back:
there is nothing wrong with a A-series that a turbo can't fix.
|
||||||
 7765 Posts Member #: 74 I pick holes in everything.. Chief ancient post excavator |
25th Dec, 2006 at 12:31:24pm
On 22nd of Dec, 2006 at 06:59pm paneermeel said:
@iain: i've seen mirage manifolds before. but that will mean extra cost's and apperantly the stock metro flows better. so thats a bonus to. but thanx for the response Nic got second in this year's Mini showdown with the Mirage manifolds. 13.6sec quarter was it? So, I don't think you should worry too much about that! On 13th Jul, 2012 Ben H said:
Mine gets in the way a bit, but only when it is up. If it is down it does not cause a problem. |
||||||
|
7765 Posts Member #: 74 I pick holes in everything.. Chief ancient post excavator |
25th Dec, 2006 at 12:31:31pm
On 22nd of Dec, 2006 at 06:59pm paneermeel said:
@iain: i've seen mirage manifolds before. but that will mean extra cost's and apperantly the stock metro flows better. so thats a bonus to. but thanx for the response Nic got second in this year's Mini showdown with the Mirage manifolds. 13.6sec quarter was it? So, I don't think you should worry too much about that! On 13th Jul, 2012 Ben H said:
Mine gets in the way a bit, but only when it is up. If it is down it does not cause a problem. |
||||||
 9319 Posts Member #: 59 First mini turbo to get in the 12's & site perv Herefordshire |
25th Dec, 2006 at 05:53:47pm
13.5 actually
|
||||||
|
282 Posts Member #: 1404 Senior Member The Netherlands |
26th Dec, 2006 at 12:52:35pm
On 25th of Dec, 2006 at 12:31pm Vegard said:
So, I don't think you should worry too much about that! i will be more then happy if everything will work properly....
at the moment it's a standerd 1000cc , so the power output of a turbo will be just fine for me:cool: standerd or mirage........... there is nothing wrong with a A-series that a turbo can't fix.
|
||||||
|
583 Posts Member #: 233 Post Whore Beugen, Netherlands |
27th Dec, 2006 at 10:10:32pm
On 26th of Dec, 2006 at 12:52pm paneermeel said:
at the moment it's a standerd 1000cc , so the power output of a turbo will be just fine for me:cool: standerd or mirage........... but not for long... , try Rob van Balen, he's dutch and is driving a LHD mini. I do not know his username (admin??) but he maybe close to you.
Have fun
|
||||||
 530 Posts Member #: 1192 Post Whore In the garage......again!! |
29th Jan, 2007 at 11:28:37pm
ok, been reading this with interest, i'm just about ready to cut the bulkhead for the turbo box. Got the Avonbar box but the diagram is really crap that came with it. Anyone got any measurements for where to start the chop, ie, how far from the two holes for the master cylinders, how far down etc.
133.5 bhp 123 lb torque 116mph @6640rpm 9.5psi
|
||||||
 314 Posts Member #: 1311 Senior Member Yeovil, Somerset |
30th Jan, 2007 at 09:50:08am

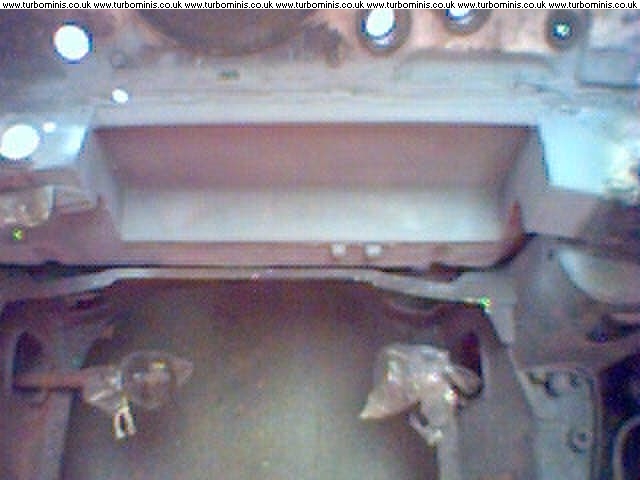

As for how far down, the box is shaped so that it will sit in one place only. Theres a lip on the left of the box that sits up flush under the main cross section of the bulkhead.
|
||||||
|
314 Posts Member #: 1311 Senior Member Yeovil, Somerset |
30th Jan, 2007 at 09:52:06am

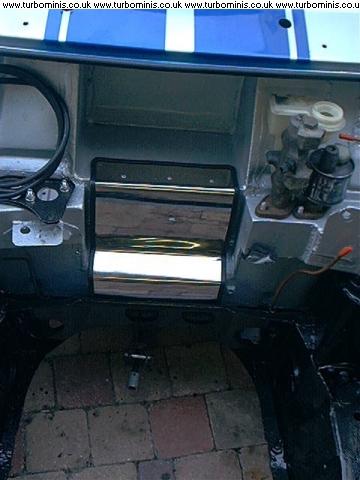

A close up shot, shows the positioning a bit better
|
||||||
 807 Posts Member #: 224 Post Whore Katy TEXAS |
30th Jan, 2007 at 01:54:53pm

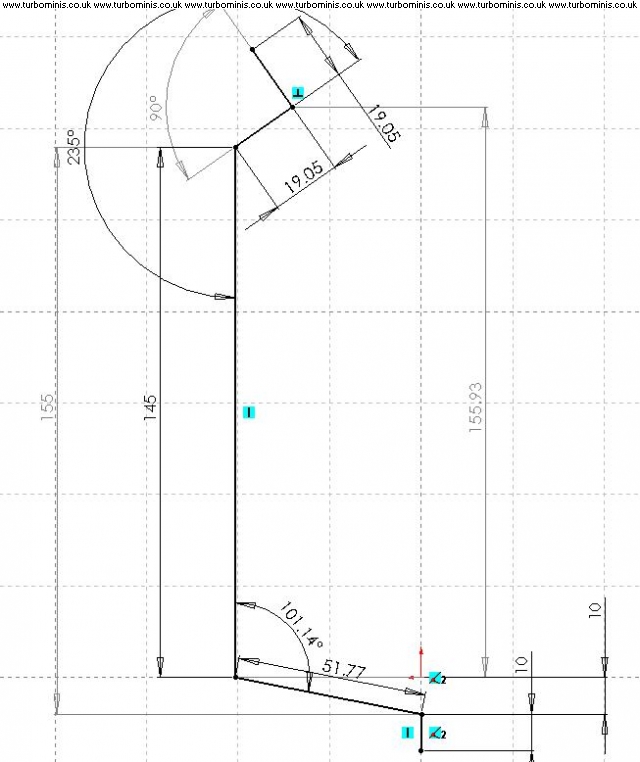

These are the dimemsions I used for the main plate cross-section (custom box), hope this helps, not gospel and only a guide.
Edited by Brocky on 30th Jan, 2007. BTW - I took my buddy VTEC Pete out for a spin this weekend, and even though I am running her in, he gave it a name, the "Brocket"...cause I'm a brocket maaannn, nah nah nah nah nah nah nah nah nah nah nah....
|
||||||
|
530 Posts Member #: 1192 Post Whore In the garage......again!! |
30th Jan, 2007 at 08:58:48pm
thats a big help everyone, will let you know and post pictures of how i get on. 133.5 bhp 123 lb torque 116mph @6640rpm 9.5psi
|
||||||
|
455 Posts Member #: 1502 Senior Member Aberdeenshire, scotland. |
22nd Nov, 2007 at 02:16:27am
Might aswel stick mine on here too:
|
||||||
|
807 Posts Member #: 224 Post Whore Katy TEXAS |
26th Nov, 2007 at 06:34:16pm
Nice to see some progress jim ! BTW - I took my buddy VTEC Pete out for a spin this weekend, and even though I am running her in, he gave it a name, the "Brocket"...cause I'm a brocket maaannn, nah nah nah nah nah nah nah nah nah nah nah....
|
||||||
 6549 Posts Member #: 1149 #1 Basshunter Fan Force Racing ICT Dept Manager Miglia Turbo Am frum Yokshyer tha noes! |
27th Nov, 2007 at 12:07:23pm
I hope mine will be big enough
1/4 Mile 14.3secs 96Mph Terminal 10psi of boost.
|
||||||
|
807 Posts Member #: 224 Post Whore Katy TEXAS |
27th Nov, 2007 at 02:03:08pm
Yep looks fine, tidy car btw BTW - I took my buddy VTEC Pete out for a spin this weekend, and even though I am running her in, he gave it a name, the "Brocket"...cause I'm a brocket maaannn, nah nah nah nah nah nah nah nah nah nah nah....
|
||||||
|
6549 Posts Member #: 1149 #1 Basshunter Fan Force Racing ICT Dept Manager Miglia Turbo Am frum Yokshyer tha noes! |
27th Nov, 2007 at 02:05:19pm
Thanx! :)
On 27th of Nov, 2007 at 02:03pm Brocky said:
Yep looks fine, tidy car btw 1/4 Mile 14.3secs 96Mph Terminal 10psi of boost.
|
||||||
|
3 Posts Member #: 5953 Junior Member |
29th Apr, 2009 at 08:25:23am

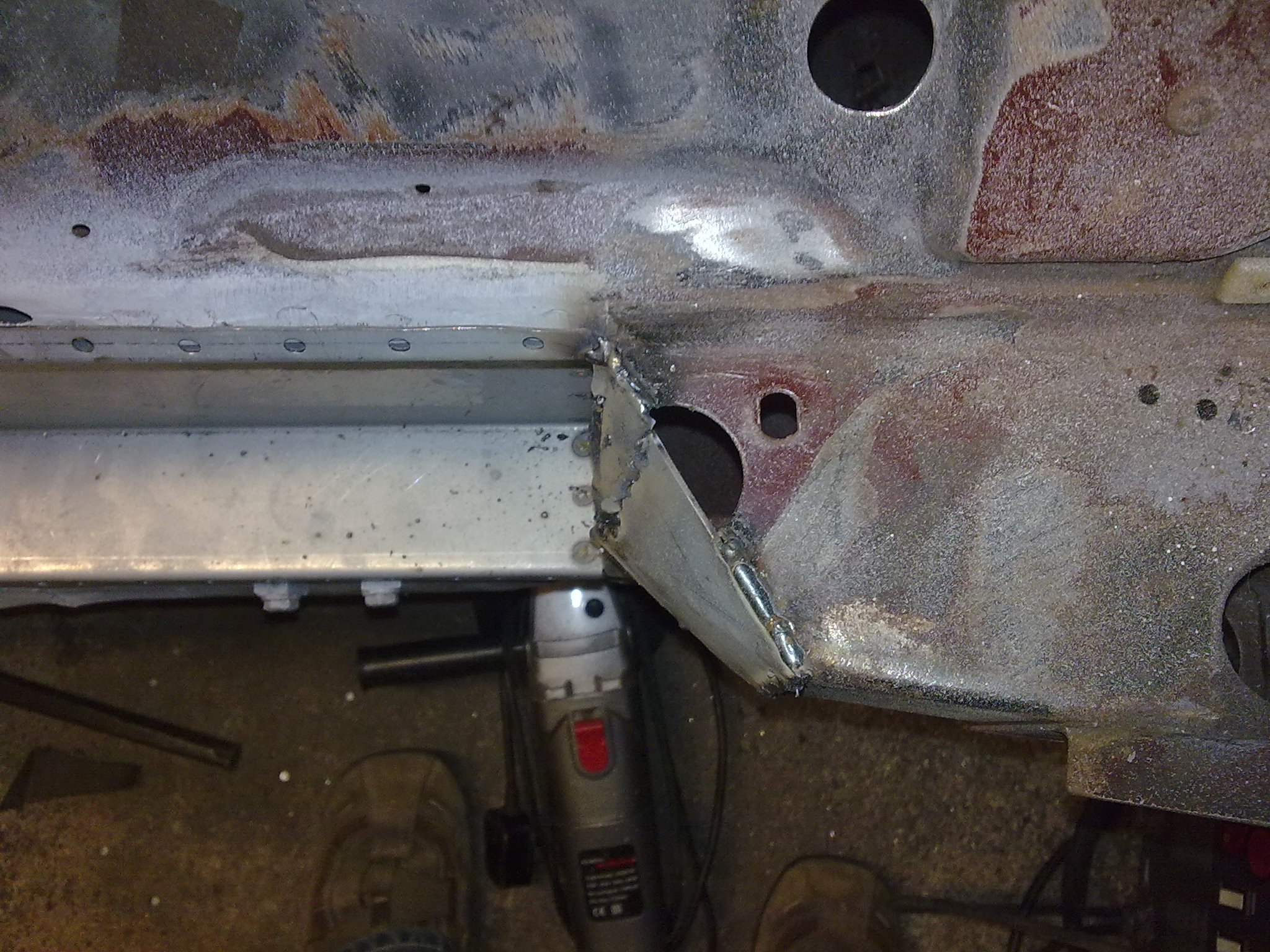

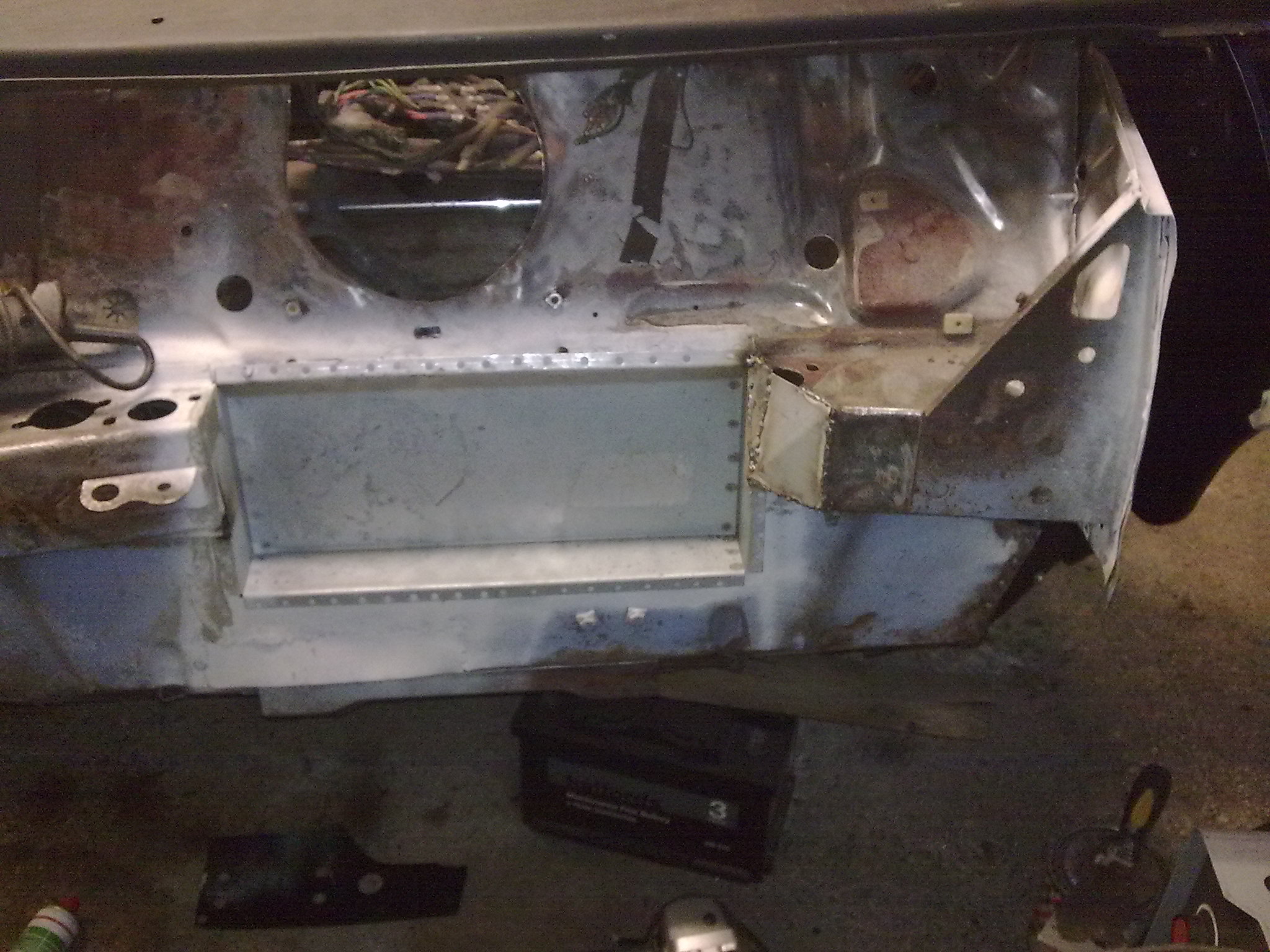

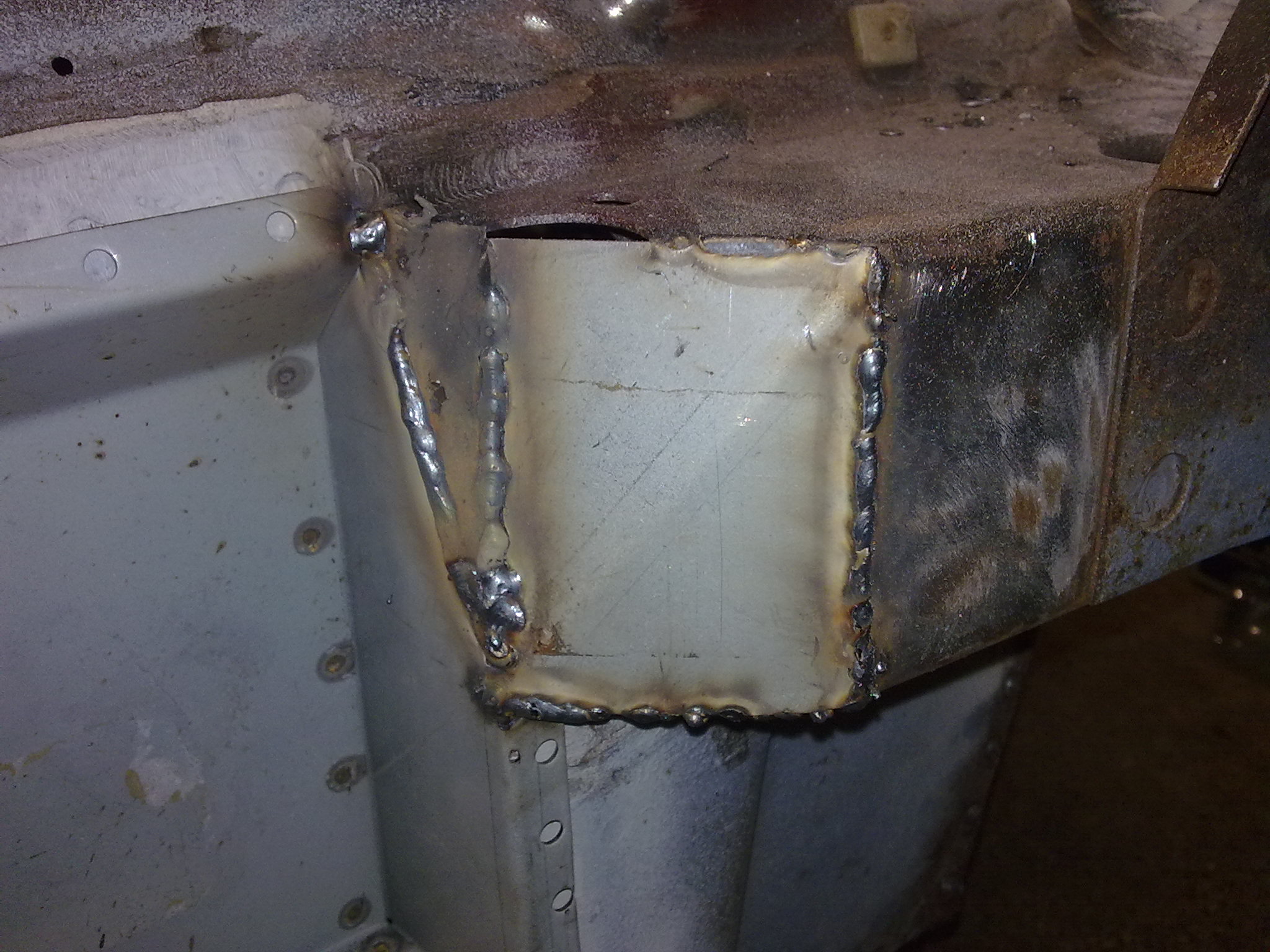

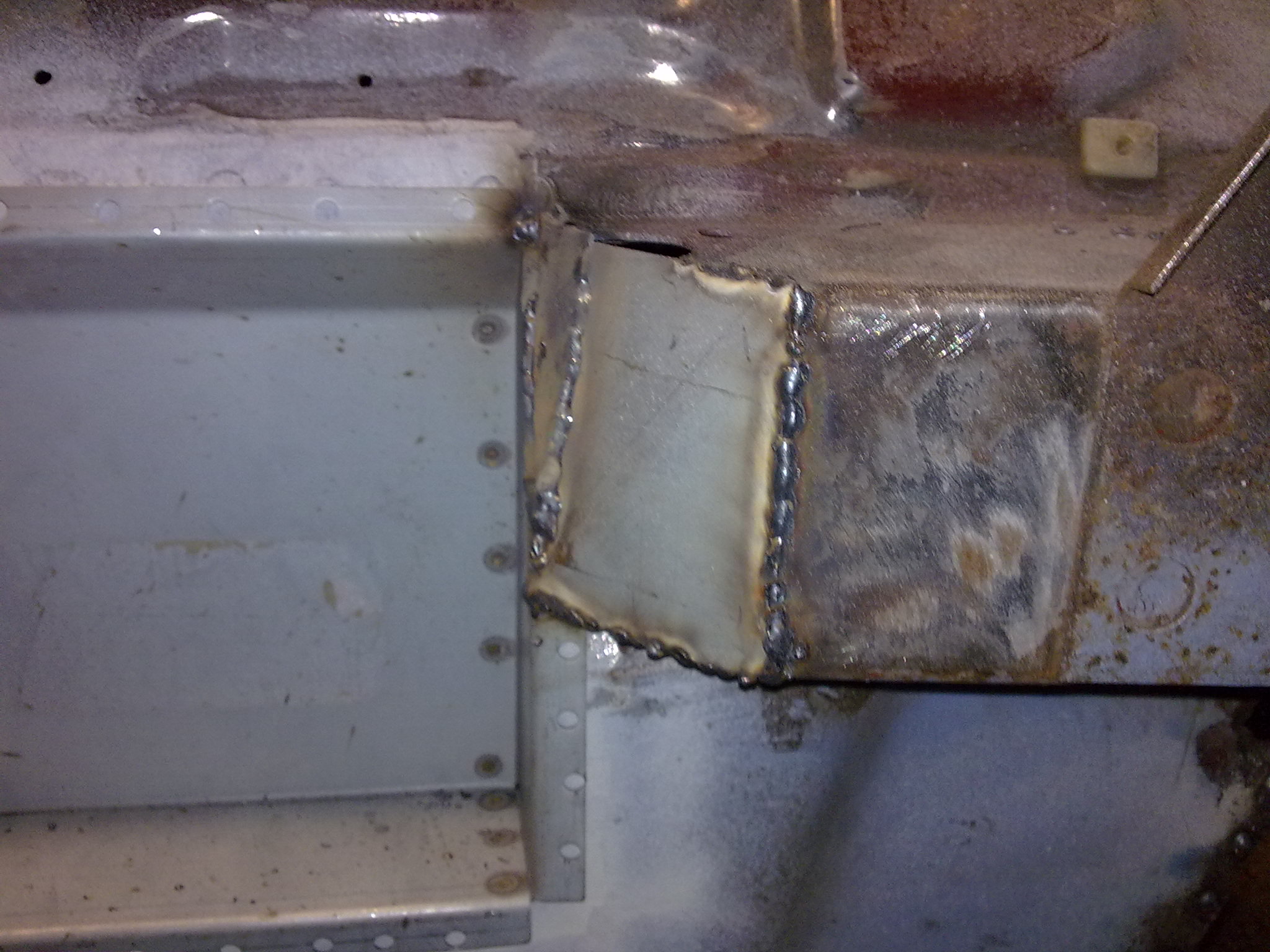

I bought a turbo box from Avonbar some time ago but only just got round to building the car. It came with the main box plus a separate blanking plate for the nearside end of the box. I couldn't work out how on earth that plate should be fitted. It just didn't seem big enough. So using the pictures here, I think I've got it roughly right. Here are some pictures. I am slightly worried there's too much bulkhead left. Perhaps someone could give me their oppinion. As you can see, I've had to add an extra triangle of metal to bridge the gap between the plate and the box and I'll have to fill in the old heater hose hole.
|
||||||
|
2490 Posts Member #: 1954 Post Whore Luton Bedfordshire |
29th Apr, 2009 at 12:10:56pm
I cut my cross member out all th way to the brace on the near side. That gave me the extra space for the induction pipe. It also looks like my box is slightly wider than yours. Own the day
|
||||||
|
3 Posts Member #: 5953 Junior Member |
29th Apr, 2009 at 02:20:38pm
I see on the Avonbar website that they recommend moving the engine forward half an inch. I assume this will help clearance at this point too. |
||||||
|
2490 Posts Member #: 1954 Post Whore Luton Bedfordshire |
29th Apr, 2009 at 04:34:21pm
On 29th Apr, 2009 stuart_brierley said: Stop the turbo smacking into your new lovely box.
I see on the Avonbar website that they recommend moving the engine forward half an inch. I assume this will help clearance at this point too. Own the day
|
||||||
