On 20th Jul, 2019 Joe C said:
While your messing with motors and stuff... Maybe you could add a sprung timing chain /belt tensioner, and a movable one the other side so you can advance/ retard the cam on the fly....


Joe, I don't think there would be enough change in timing just by swapping the chain tension from side to side but there should certainly be enough room inside a duplex cam sprocket to backfit a standard VVT phaser from a small engined VVT setup.

Maybe not neatly, but possible.

MS2-E has no code for it (MS3 does, but doesn't have the siamese code) but an Arduino could easily cope.

But surely the main issue is the single cam.

Most VVT deal with inlets and exhausts separately. I presume it can be optimised better by dealing with the two parts of the cycle separately.

But it would be an interesting extension to the project.

Schrödinger's cat - so which one am I ???


Graham T

User Avatar

608 Posts
Member #: 1106
Post Whore

Hungerford, Berks




On 22nd Jul, 2019 Rod S said:
On 20th Jul, 2019 Joe C said:
While your messing with motors and stuff... Maybe you could add a sprung timing chain /belt tensioner, and a movable one the other side so you can advance/ retard the cam on the fly....


Joe, I don't think there would be enough change in timing just by swapping the chain tension from side to side but there should certainly be enough room inside a duplex cam sprocket to backfit a standard VVT phaser from a small engined VVT setup.

Maybe not neatly, but possible.

MS2-E has no code for it (MS3 does, but doesn't have the siamese code) but an Arduino could easily cope.




I would probably use the same Ardiuno as will be used for the Variable length runners.
I do not have a cam wheel at hand, but if the cam wheel is 150mm dia, then to move 10 degree’s would require around 13mm of linear movement? So that would be a large deflection on the timing chain I think.
Lot of research into this to see if it is feasible.




On 22nd Jul, 2019 Rod S said:

But surely the main issue is the single cam.

Most VVT deal with inlets and exhausts separately. I presume it can be optimised better by dealing with the two parts of the cycle separately.

But it would be an interesting extension to the project.


Presumable this would not be as efficient solution as with a twin cam setup, but assuming the results I have so far are good, which I see no reason why not, then even with the single cam, being able to swing the cam timing would give some reasonable benefit??




Moving back to data from the Jul Dyno Session:


This is the comparison graph between run 41 from Feb and then run -49 from this Jul, so comparing runs which had the same ignition timing.
Boost build in Feb was a little lower in the rev range.










Next, Robert sent me the SOT data earlier in the week, but I’ve only just found time to go through it.








This, just for fun, includes Feb’s run 44 where the head gasket gave up.
Peak there was at 18PSI







And just to show the difference with BHP and Torque, to get an idea of how the SOT equates:
(To make it less messy, I have only used Jim and Roberts data.)

This was the last run in Jul










And then just to finish off:















’77 Clubman build thread
http://www.turbominis.co.uk/forums/index.php?p=vt&tid=618189

Siamese 5 port EFI testing
http://www.turbominis.co.uk/forums/index.php?p=vt&tid=611675


Joe C

User Avatar

12307 Posts
Member #: 565
Carlos Fandango

Burnham-on-Crouch, Essex

13 mm deflection and 10 deg Change sounds fine to me, a longer chain would very needed, or you could look at doing it with a belt. (Andy no!! Lol!)

I did look at these oil presure controlled pulleys with a view to adapting them into the K head, but it was all looking a bit far outboard of the cam bearing for my liking, plus it would be easier to just use the fiat head with mappable valve timing....

On 28th Aug, 2011 Kean said:
At the risk of being sigged...

Joe, do you have a photo of your tool?



http://www.turbominis.co.uk/forums/index.p...9064&lastpost=1

https://joe1977.imgbb.com/



theoneeyedlizard

User Avatar

7265 Posts
Member #: 1268
The Boom Boom speaker Police!

Essex


Belt?! Pahahahahaha!

On 24th Jul, 2019 Joe C said:
13 mm deflection and 10 deg Change sounds fine to me, a longer chain would very needed, or you could look at doing it with a belt. (Andy no!! Lol!)

I did look at these oil presure controlled pulleys with a view to adapting them into the K head, but it was all looking a bit far outboard of the cam bearing for my liking, plus it would be easier to just use the fiat head with mappable valve timing....

In the 13's at last!.. Just


Jimster
Site Admin

User Avatar

9403 Posts
Member #: 58
455bhp per ton
12 sec 1/4 mile road legal mini

Sunny Bridgend, South Wales

This is amazing progress, keep up the good work

Team www.sheepspeed.com Racing

On 15th May, 2009 TurboDave said:

I think the welsh one has it right!


1st to provide running proof
of turbo twinkie in a car and first to
run a 1/4 in one!!

Is your data backed up?? directbackup.net one extra month free for all Turbo minis members, PM me for detials


robert

User Avatar

6745 Posts
Member #: 828
Post Whore

uranus

Re variable cam timing ,

what i was thinking of doing is ,

some engines had a pair of sprockets mounted on a bar in a tube .., one at either end .this tube was then mounted horizontally in the middle of the cam chain run...,halfway between the cam sprocket and the crank sprocket ..the centre part was mounted solid , and the bar inside could be moved, by oil pressure i guess, from side to side .

so you have a pretty slack chain , and the bar is over to the left taking up the slack , and the cam is max advanced , then the pair of sprockets can move to the right , and take the slack over to the other side and now your at max retard .

i cannot remember what engine had it .

Medusa + injection = too much torque for the dyno ..https://youtu.be/qg5o0_tJxYM


Joe C

User Avatar

12307 Posts
Member #: 565
Carlos Fandango

Burnham-on-Crouch, Essex

Audi rings a bell for this kind of arrangement.

On 28th Aug, 2011 Kean said:
At the risk of being sigged...

Joe, do you have a photo of your tool?



http://www.turbominis.co.uk/forums/index.p...9064&lastpost=1

https://joe1977.imgbb.com/



Rod S

User Avatar

5988 Posts
Member #: 2024
Formally Retired

Rural Suffolk

The problem - as I see it - with the A-series is that the chain run is so short.
To get enough sideways movement (both equally on the driven and non-driven side) to change the timing by those sort of figures the two additional sprockets would have to be just below the big (cam) sprocket and force the (new, longer) chain to loop underneath it either side (alternately).

It would be interesting to sketch it out though.

Somewhere in the garage I have a complete spare duplex set (if only I could remember where...)

Schrödinger's cat - so which one am I ???


Joe C

User Avatar

12307 Posts
Member #: 565
Carlos Fandango

Burnham-on-Crouch, Essex

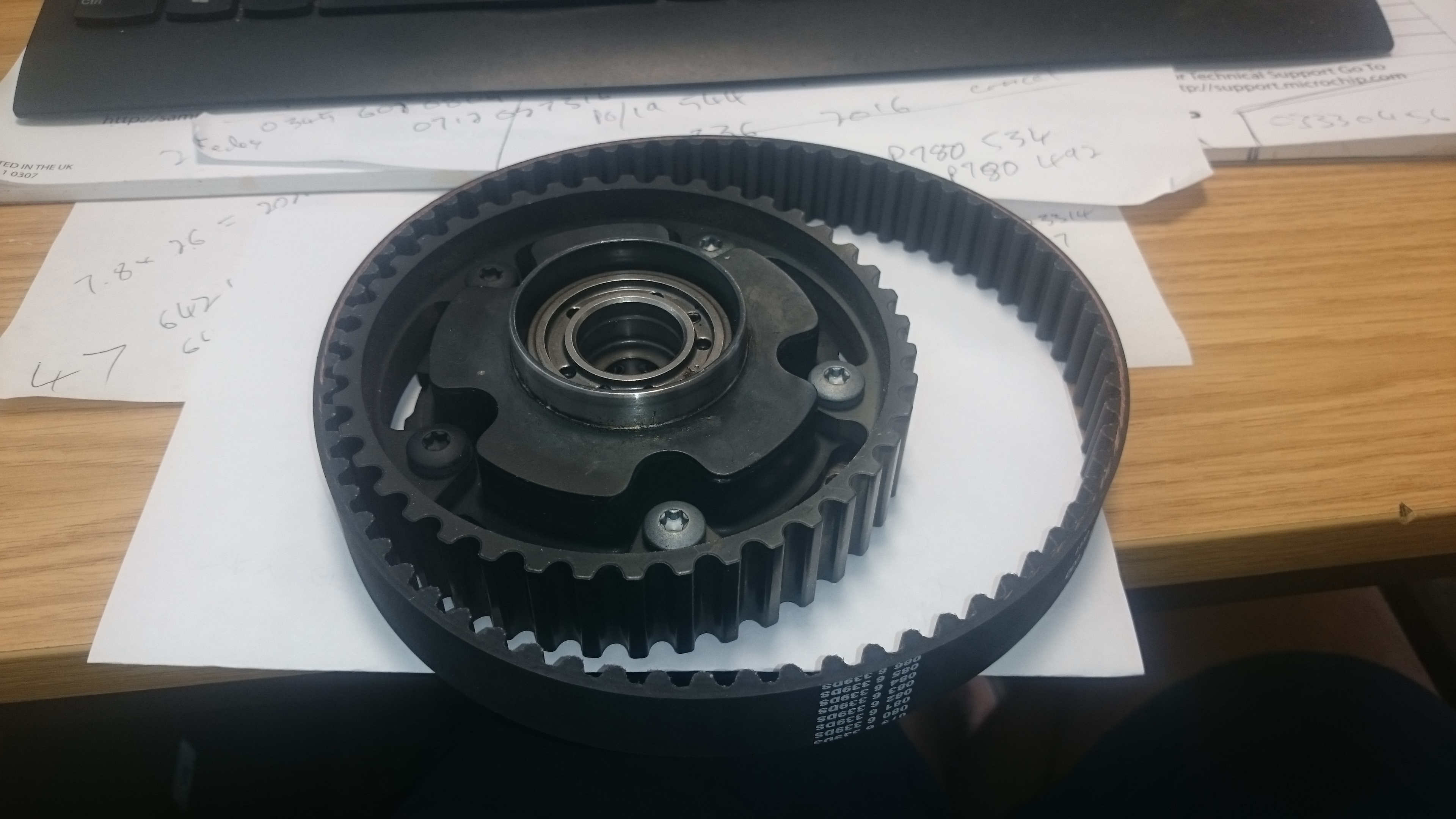

Hmmmm....


Attachments:

On 28th Aug, 2011 Kean said:
At the risk of being sigged...

Joe, do you have a photo of your tool?



http://www.turbominis.co.uk/forums/index.p...9064&lastpost=1

https://joe1977.imgbb.com/



Rod S

User Avatar

5988 Posts
Member #: 2024
Formally Retired

Rural Suffolk

OK Joe, stop teasing....
What is that ???

It looks a bit like a hydraulic phase wheel but I thought they only used the hydraulic ones on engines with chain driven cams.
(for obvious reasons).
Actually, I'll take that back, I think the Volvo derived 5 pot engines used hydraulic phase wheels with belt driven cams (I'm not 100% sure but I know my current daily is chain driven VVT so it's all in oil).

I've dug out my spare duplex chainset and the issue is immediately obvious - the two sprockets are so close together that pushing the chain from either side, it doesn't really matter where you push it, it will wrap underneath the big sprocket a lot.

The fundamental issue is that with a Reynolds chain - doesn't matter whether simplex or duplex - the links have to be an even number because they alternate inner and outer link plates.
The chain appears (from a crude measurement) to be 3/8" pitch so the next possible chain length would be 3/4" longer.

And from a very quick practical test it does NOT seem we are able to "lose" 3/4" by pushing the chain in from either side or both sides.

Just a crude test on a chain and a ruler but maybe a belt is a better solution as their tooth pitch is usually less than 3/8".

Schrödinger's cat - so which one am I ???


Graham T

User Avatar

608 Posts
Member #: 1106
Post Whore

Hungerford, Berks

So varying the tension on the timing chain looks like a bit of a no go then…

But I have had a quick look at the prices of a belt conversion kit – That would have to be some serious saving…
In the meantime, spend some time researching these phaser wheels and how they work.



But for now, 1.5:1 rockers now fitted





This should be interesting to see how this changes things.


But before I get back on the road, seeing as I have most of it stripped out, I’m now going to finish off the New runner welding.


I am sorry about the obscenely shiny bling below, I was just attempting to keep runners a bit cooler. Personally I’d rather accept a bit more heat soak!
I might even try to make a heat shield while it is off the car this time.







Piccy above is with the Runner fully extended. Back runner still in its original 407mm position.

Someone on here posted a picture in the past of some long cast inlet manifold for a carb, sometime in the dim distant past (I think it was Joe?), but I can’t find it now. Would just be interesting to compare.












’77 Clubman build thread
http://www.turbominis.co.uk/forums/index.php?p=vt&tid=618189

Siamese 5 port EFI testing
http://www.turbominis.co.uk/forums/index.php?p=vt&tid=611675


robert

User Avatar

6745 Posts
Member #: 828
Post Whore

uranus

i think this is the sort of thing i was thinking of , its moves the sliders one way or the other .

https://www.aliexpress.com/item/32852690846.html





so if mounted in between the chain runs it would take up the slock one way or the other and so change the timing .

Medusa + injection = too much torque for the dyno ..https://youtu.be/qg5o0_tJxYM


Joe C

User Avatar

12307 Posts
Member #: 565
Carlos Fandango

Burnham-on-Crouch, Essex

LOL Rod

I think Its from the 5 cyl volvo lump used in the focus RS's,

esentially there are two oil inlets, one feeding to either side of some "vanes" solenoids balence the oil pressure to change the cam timing, its got 15deg retard marked on it.
I imagine one side is fed from a lower presure regulated feed for the lifters, and the other side has a solenoid. there must be a cam sensor for feedback too, I imagine it must be a closed loop PID type thing to stop the timing going awol.

On 28th Aug, 2011 Kean said:
At the risk of being sigged...

Joe, do you have a photo of your tool?



http://www.turbominis.co.uk/forums/index.p...9064&lastpost=1

https://joe1977.imgbb.com/



Graham T

User Avatar

608 Posts
Member #: 1106
Post Whore

Hungerford, Berks




On 26th Jul, 2019 Joe C said:
LOL Rod

I think Its from the 5 cyl volvo lump used in the focus RS's...


Rod runs outside and starts stripping his engine down to see if his has the same arrangement.

*happy**happy*

’77 Clubman build thread
http://www.turbominis.co.uk/forums/index.php?p=vt&tid=618189

Siamese 5 port EFI testing
http://www.turbominis.co.uk/forums/index.php?p=vt&tid=611675


Rod S

User Avatar

5988 Posts
Member #: 2024
Formally Retired

Rural Suffolk

On 26th Jul, 2019 Graham T said:


On 26th Jul, 2019 Joe C said:
LOL Rod

I think Its from the 5 cyl volvo lump used in the focus RS's...


Rod runs outside and starts stripping his engine down to see if his has the same arrangement.

*happy**happy*


LOL - mine's the later 4 cylinder ecoboost version with chain driven VVT cams but there is a lot of technical info on the owners club forum, probably more info on the MK2 (with the Volvo lump) than the Mk3.
The technical stuff is all behind a paywall but, as I'm paid up at the moment, I'll have a dig around later.

Schrödinger's cat - so which one am I ???


Joe C

User Avatar

12307 Posts
Member #: 565
Carlos Fandango

Burnham-on-Crouch, Essex

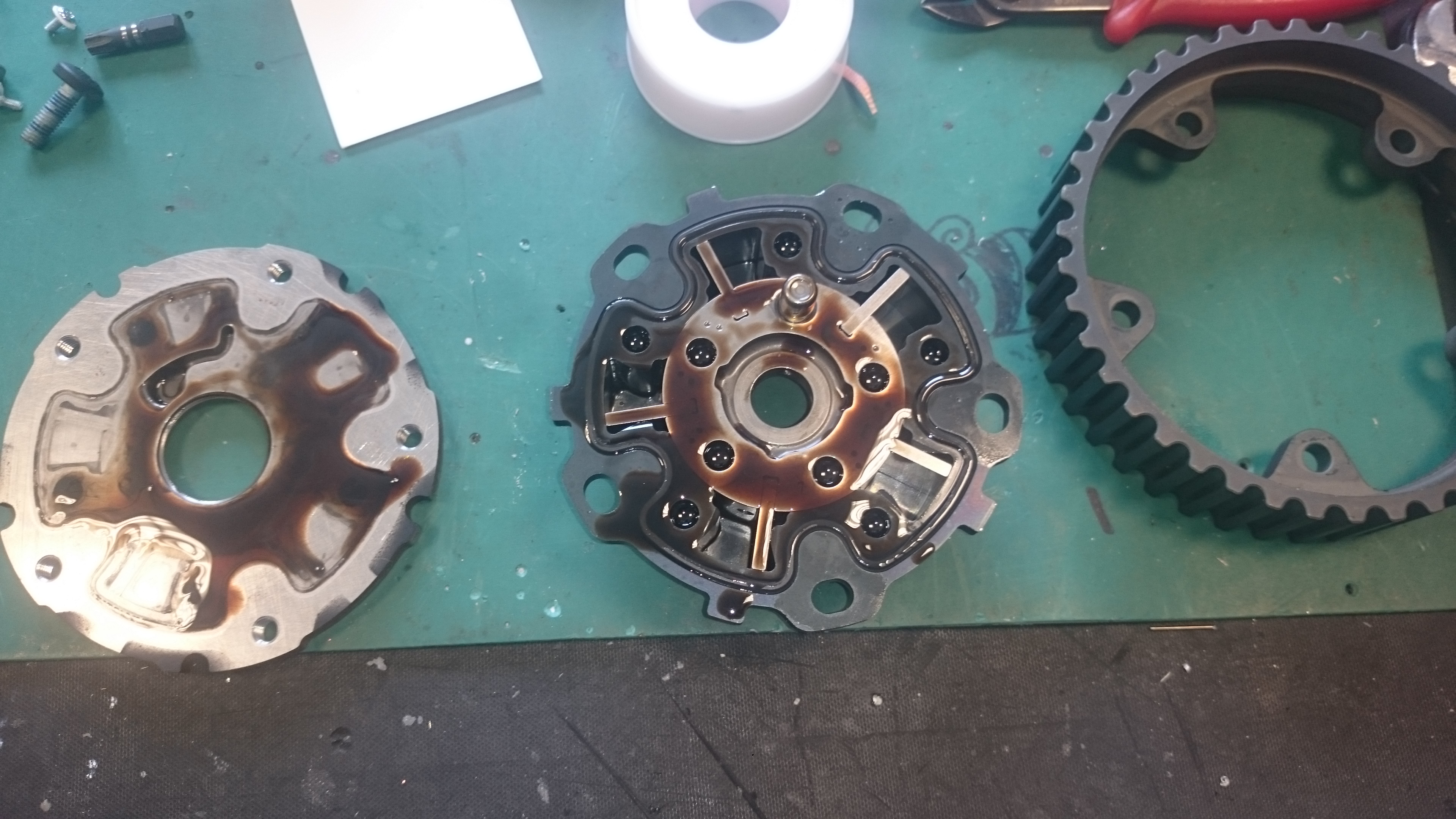

Gratuitous topless shot.....


Attachments:

On 28th Aug, 2011 Kean said:
At the risk of being sigged...

Joe, do you have a photo of your tool?



http://www.turbominis.co.uk/forums/index.p...9064&lastpost=1

https://joe1977.imgbb.com/



Rod S

User Avatar

5988 Posts
Member #: 2024
Formally Retired

Rural Suffolk

Joe,

What's the max OD of the left and middle bits (ie, would it fit into a machined out duplex sprocket), and what's the rear view like ? - The Ford ones I've seen actually only use the oil pressure in one direction and have a massive clock type spring on the back for the return.

Schrödinger's cat - so which one am I ???


Joe C

User Avatar

12307 Posts
Member #: 565
Carlos Fandango

Burnham-on-Crouch, Essex

105mm, but probably enough meet to trim a little off the outside, maybe down to 100mm.

I thought the same about putting it into a chain sprocket.

On 28th Aug, 2011 Kean said:
At the risk of being sigged...

Joe, do you have a photo of your tool?



http://www.turbominis.co.uk/forums/index.p...9064&lastpost=1

https://joe1977.imgbb.com/



Rod S

User Avatar

5988 Posts
Member #: 2024
Formally Retired

Rural Suffolk

That could be do-able then.

The cast recess in the duplex sprocket I've got in front of me is 96mm but the inner face of the chain runs at 112mm so the cast recess could safely be machined out to at least 105mm. (there will be some pictures up later).

What about th rear face, is a return hair/clock spring (like the Ford ones) or is it twin oil feeds like you suggested before ?

Schrödinger's cat - so which one am I ???


Rod S

User Avatar

5988 Posts
Member #: 2024
Formally Retired

Rural Suffolk

On 26th Jul, 2019 robert said:
i think this is the sort of thing i was thinking of , its moves the sliders one way or the other .

https://www.aliexpress.com/item/32852690846.html





so if mounted in between the chain runs it would take up the slock one way or the other and so change the timing .


Interesting thought Robert.

I had initially only thought about pushing the chain inwards, like the standard tensioner.

But here's the problem in pictures.



So little space.
Now add a chain with two extra links (has to be two minimum and even numbers) and tension it outwards.

[/url]

Then look at how small the tensioner pad or roller would have to be,

[/url]

But we are overlooking the obvious.......

The bottom sprocket is only 20 teeth which is a massive 18 degree (crank) per tooth so moving the chain by two tooth's length - which is what we have available with the next longest chain - is 36 crank degrees.

So if we only want a 10 degree swing we could start here,

[/url]

Which would give us +/- 18

But, as we only want +/- 5 the sideways movement should only be about 1/3

Which could give us this,

[/url]

And could increase the tensioner sizes like this,

[/url]

But what I haven't considered yet is if we lengthened the chain by four links.....

That should give a massive amount of room for the tensioners. I have shown the representation of rollers so far - that in itself is an issue as, at such small diameter, they would have to be profiled to match the chain, not just plain round - but internal blade types may be possible.

My only reservation would be how many teeth are left engaged on the bottom sprocket if we start pushing the chain way wider.

EDIT - typo

Edited by Rod S on 26th Jul, 2019.

Schrödinger's cat - so which one am I ???


Graham T

User Avatar

608 Posts
Member #: 1106
Post Whore

Hungerford, Berks

Rod, if you still have this to hand, what are the dimensions as per the below?





Just to work out (crudely) the actual chain deflection required.



What sort of clearance is there normally from chain to the Timing chain cover on the left?


Increasing the deflection of the chain (or belt) on the left will effect cam timing change, pulling the cam wheel clockwise, but is there a need to actuate movement in the other direction?

Reducing the tension on the left will allow the cam to naturally return to a "base timing" (anti-clockwise), so only a spring loaded tensioner to take the slack of the chain would be needed on the right?
But depending on the total chain deflection, that spring loaded tensioner might need to be travelling also?

’77 Clubman build thread
http://www.turbominis.co.uk/forums/index.php?p=vt&tid=618189

Siamese 5 port EFI testing
http://www.turbominis.co.uk/forums/index.php?p=vt&tid=611675


Rod S

User Avatar

5988 Posts
Member #: 2024
Formally Retired

Rural Suffolk

Yes,
Still out on the bench.
I've got the cover out of storage as well but have yet to find the backplate and tensioner.

I'll photo and measure what I've got this pm.

I don't think we could rely on the cam returning by itself - yes, there is significant drag through having to move all the valvetrain but it's not by any means constant. As any individual lobe goes over it's peak, the spring energy will start to accelerate the cam rather than drag it and whilst the next lobe doing its work of opening its valve will counteract it, it won't be near the peak so won't be absorbing as much energy. That's how I look at it anyway - if you turn a cam by hand with the belt/chain off (and obviously pistons all half way down the bore) as I had to do to reset the timing from scratch on the Cossie after the belt failure it jerks forward after you pass the lobe peak. More exaggerated on a twin cam as each cam has the lobes twice as far apart but I think the same applies to a cam that is doing all eight.

And certainly on the Ford design hydraulic VVT which only uses the pressure in one direction, there is a very substantial hair/clock spring built in to make sure it goes back.

EDIT - typo

Edited by Rod S on 27th Jul, 2019.

Schrödinger's cat - so which one am I ???


Rod S

User Avatar

5988 Posts
Member #: 2024
Formally Retired

Rural Suffolk

Forgot to add....

To double check my maths and see how it might work in the real world, I ordered 1m of chain and a couple of joining links to make a test chain with two extra links and also one with four.
Not automotive grade chain (that's a bit more expensive) but as it's duplex it will probably still be stronger than a standard simplex chain.....

Schrödinger's cat - so which one am I ???


Rod S

User Avatar

5988 Posts
Member #: 2024
Formally Retired

Rural Suffolk

On 27th Jul, 2019 Graham T said:
Rod, if you still have this to hand, what are the dimensions as per the below?





The radius' at the points marked are 2.38978" for the big sprocket and 1.19858" for the little sprocket.

I have a very accurate 12" plastic ruler......

Not really..... because the chain links are straight the sprockets aren't really round but are a Tetracontagon and an Icosagon with an edge length of 0.375" (the chain pitch) so there are formulas available (Google is your friend).

I just double checked with a ruler.

The length is a bit more vague because, without knowing the design distance between centres or how much this chain is worn and actually needs tensioning, I actually had to measure it....

Just a touch over 3.75", ie. just over 10 chain links as in the photo.

I've yet to find the backplate (it's raining here so I can't move anything out of the garage until it stops) so that and the cover will be later.

Schrödinger's cat - so which one am I ???


Graham T

User Avatar

608 Posts
Member #: 1106
Post Whore

Hungerford, Berks

OK Rod,
I take you point about the cam returning on it's own.

I thought I was going to be clever and work out the amount of chain deflection required to move the cam around, but I came up with around 1.37", which cannot be right?

It will be interesting to see what the chain you have ordered shows.

’77 Clubman build thread
http://www.turbominis.co.uk/forums/index.php?p=vt&tid=618189

Siamese 5 port EFI testing
http://www.turbominis.co.uk/forums/index.php?p=vt&tid=611675

Home > A-Series EFI / Injection > EFI Testing - Dyno Day 6: 1.5:1 Ratio rockers
Users viewing this thread: none. (+ 2 Guests) <- Prev   Next ->
To post messages you must be logged in!
Username: Password:
Page:
