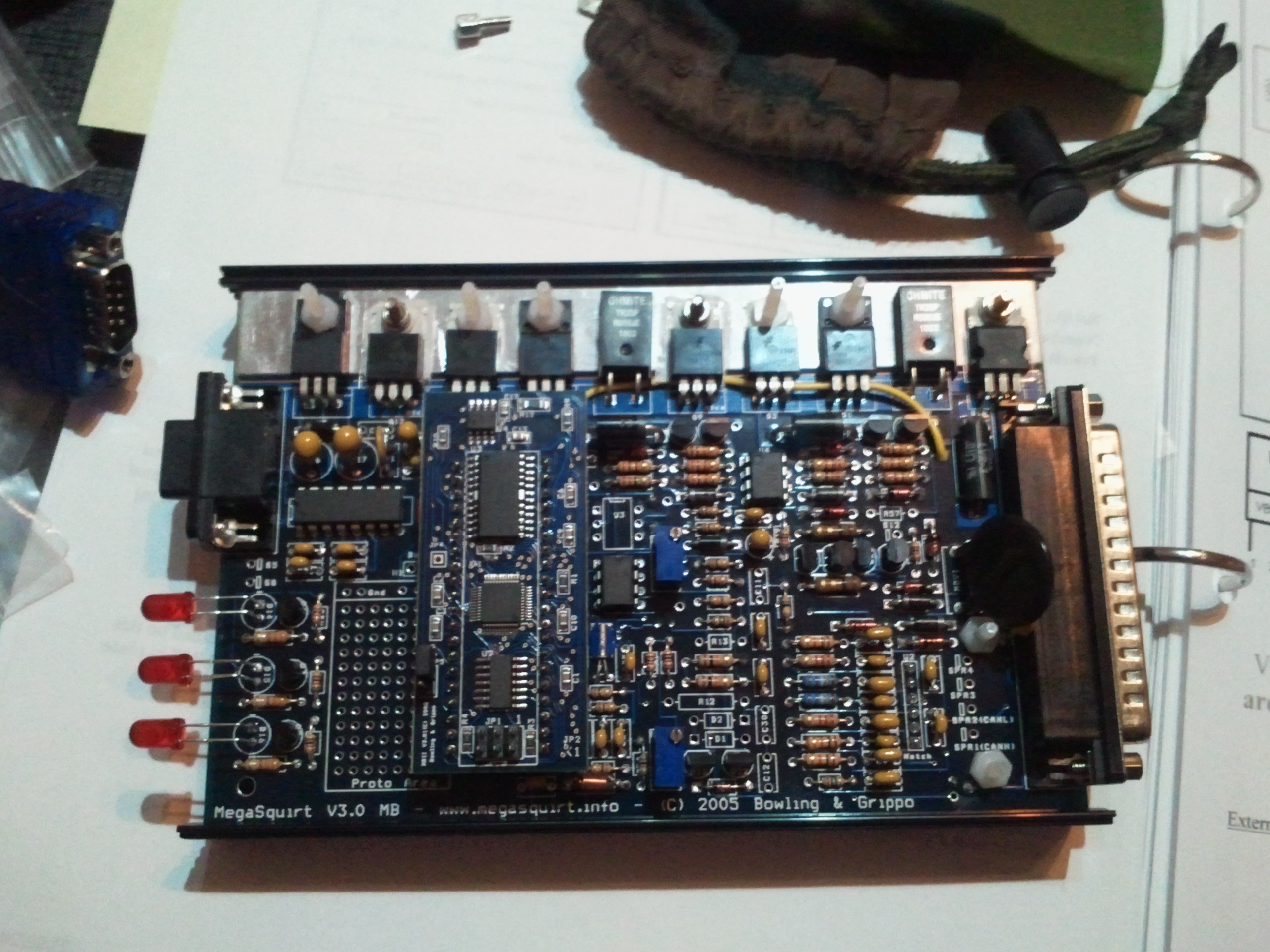

day 3 of the 3 week holiday, megasquirt is built and i enjoyed every second of it, extremely well layed out kit, but im sure we all know that by now, an order gone in with jean for the injector/ignition board and a couple spares
i built it up entirely, but some of that is coming back out now i have done alot more research and know exactly what i want left in, note the injection stuff is staying

Attachments:

1.37mb

Edited by Brett on 15th Mar, 2011.

Yes i moved to the darkside

Instagram @jdm_brett

Looks a tidy job, well done.

That is something that I've never done. Sturgeo has done our last couple.

Are you going to leave in the hall/opto input circuits for the cam sensor?

Saul Bellow - "A great deal of intelligence can be invested in ignorance when the need for illusion is deep."
Stephen Hawking - "The greatest enemy of knowledge is not ignorance, it is the illusion of knowledge."

Brett,

Very neat soldering.

I won't repeat what I think you already know that 1/2 of it isn't required if you use Jean's driver boards.......
BUT - make sure you physically remove the minimum amount of components listed on Jean's website or you will create a 12V to 5V link and destroy the CPU if you set it up in 2 channel mode.

What's the yellow wire (top middle/right) for ?

Sorry, being far too negative......

Schrödinger's cat - so which one am I ???

Yes i moved to the darkside

Instagram @jdm_brett

one more welding job out the way

Yes i moved to the darkside

Instagram @jdm_brett

busy busy

Yes i moved to the darkside

Instagram @jdm_brett

well today after i managed to get some energy together i started on the manifold, intentionally this was going to be a full manifold finnished off and running and then remade in stainless but after realising the old tubes i had ( an old lcb) was actually 3 different diameters i have decided to call it a day on this one.
My longest 'runner' if thats the right word id almost half in more in diameter :(
first of all i am not going down the equal length runner route for 2 or 3 reasons although i have absolutely bags of room it seems there may be a v3 mani
anyway here are a couple of the the pics

Yes i moved to the darkside

Instagram @jdm_brett

looks a good start. I have an old lcb if you want more tubing

hmm what diameter is it andy? dunno if its worth just pikie-ing up this till its finnished

i think on my next manifold will tuck the runner from cylinder 1 up higher, there is alot more room under the inlet manifold than i first thought.

Edited by Brett on 1st Apr, 2011.

Yes i moved to the darkside

Instagram @jdm_brett

It's 2.5" all over apart from the branches of the Y which are 2.4".I've chopped one side of the Y of for my mock up.

2.5 inch? u sure?

Yes i moved to the darkside

Instagram @jdm_brett

1.5" Need to do measuring before drinking beer...

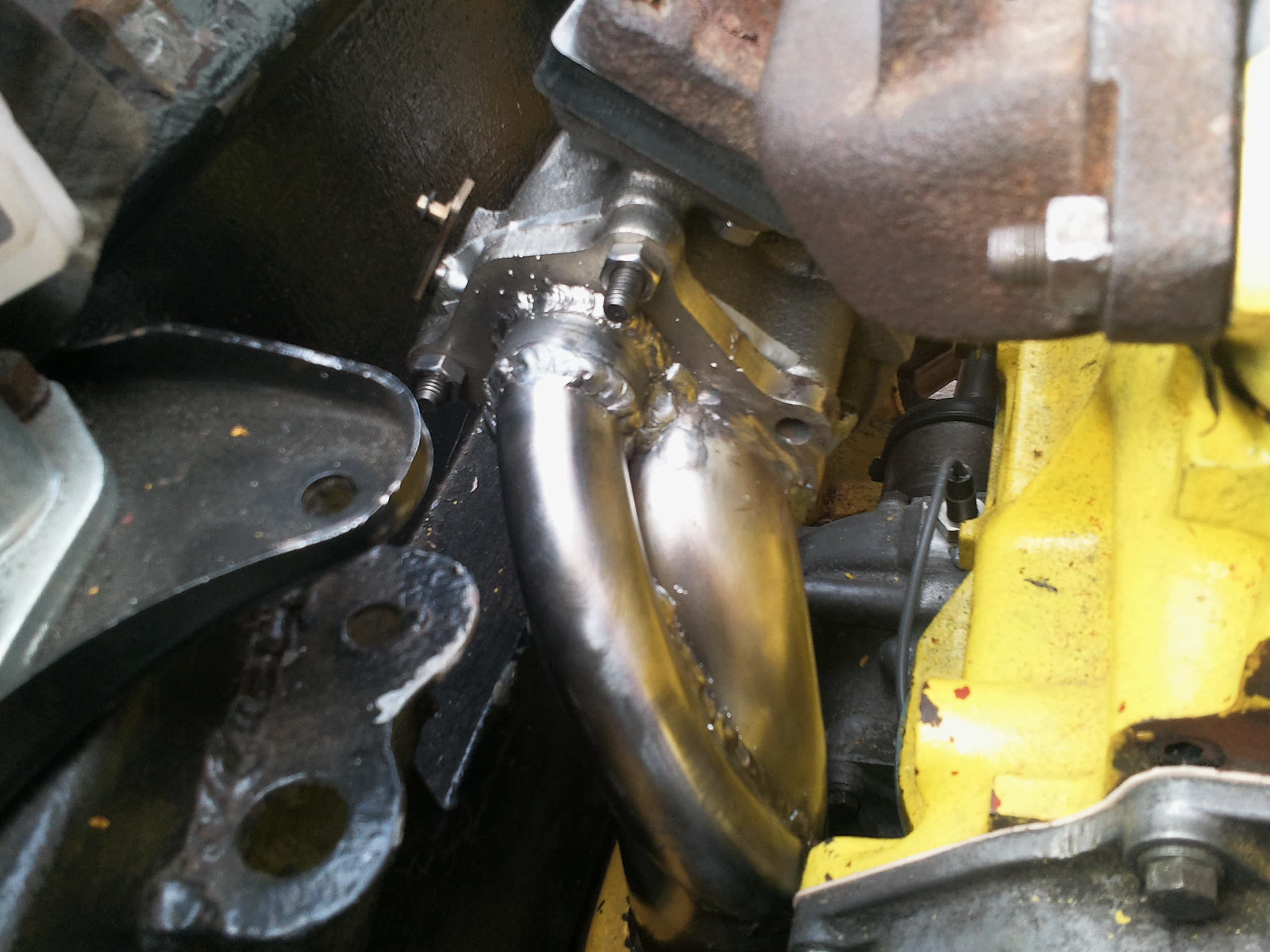

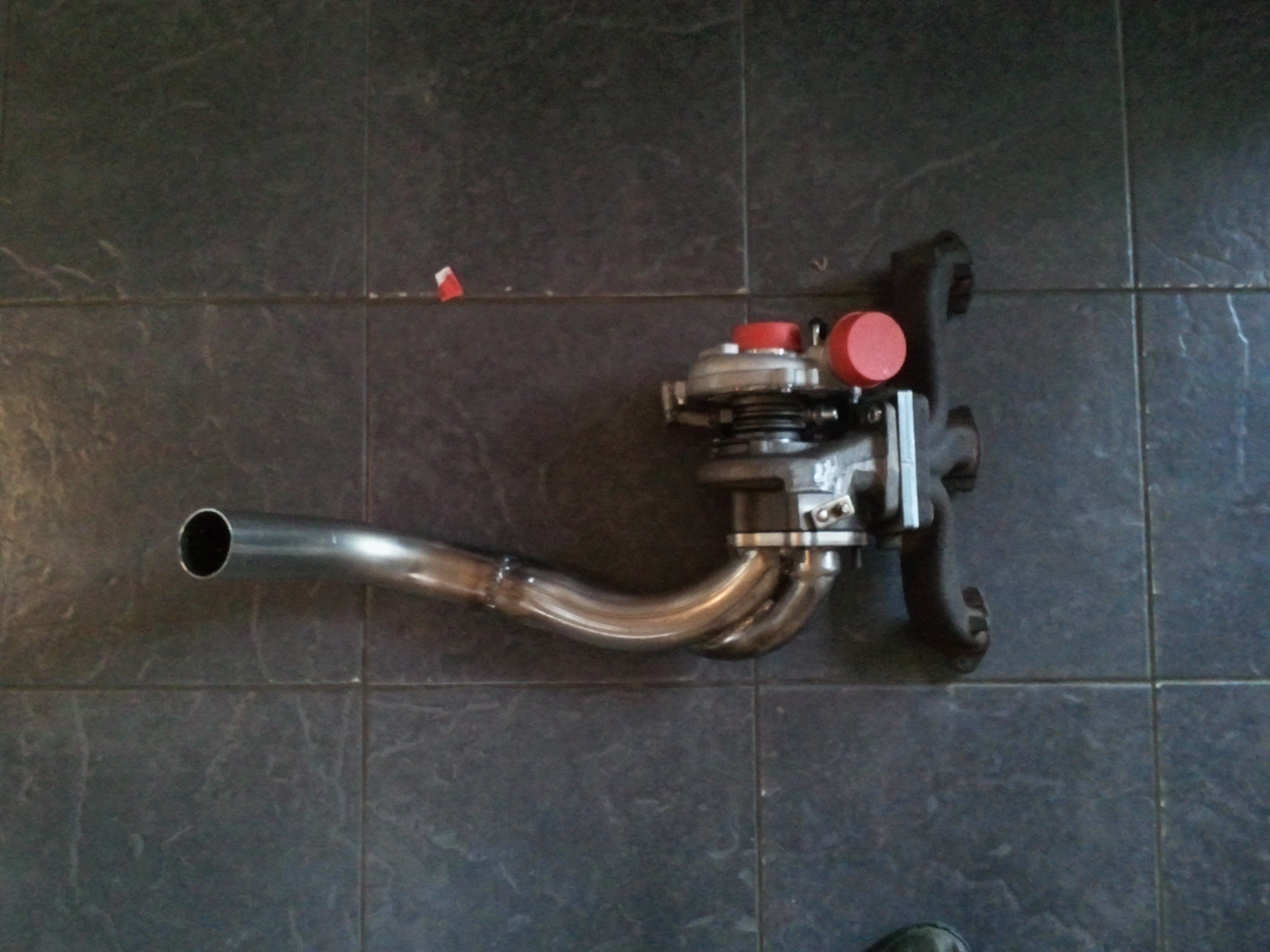

well after calling a few favours, and to save time and money the GT20 has gone down the back of the block, tbh im surprised how easy it was apart from a couple pissed up manifold studs the job is a beauty, downpipe went well, just a dump tube to make now

its 2.25 to just above the pot joint then 2 inch for the second bend

[edit] its actually a deformed 3 inch bend for the first bend down

Attachments:

1.53mb

1.51mb

1.48mb

1.57mb

Edited by Brett on 28th Feb, 2012.

Yes i moved to the darkside

Instagram @jdm_brett

I think that might blow a bit...

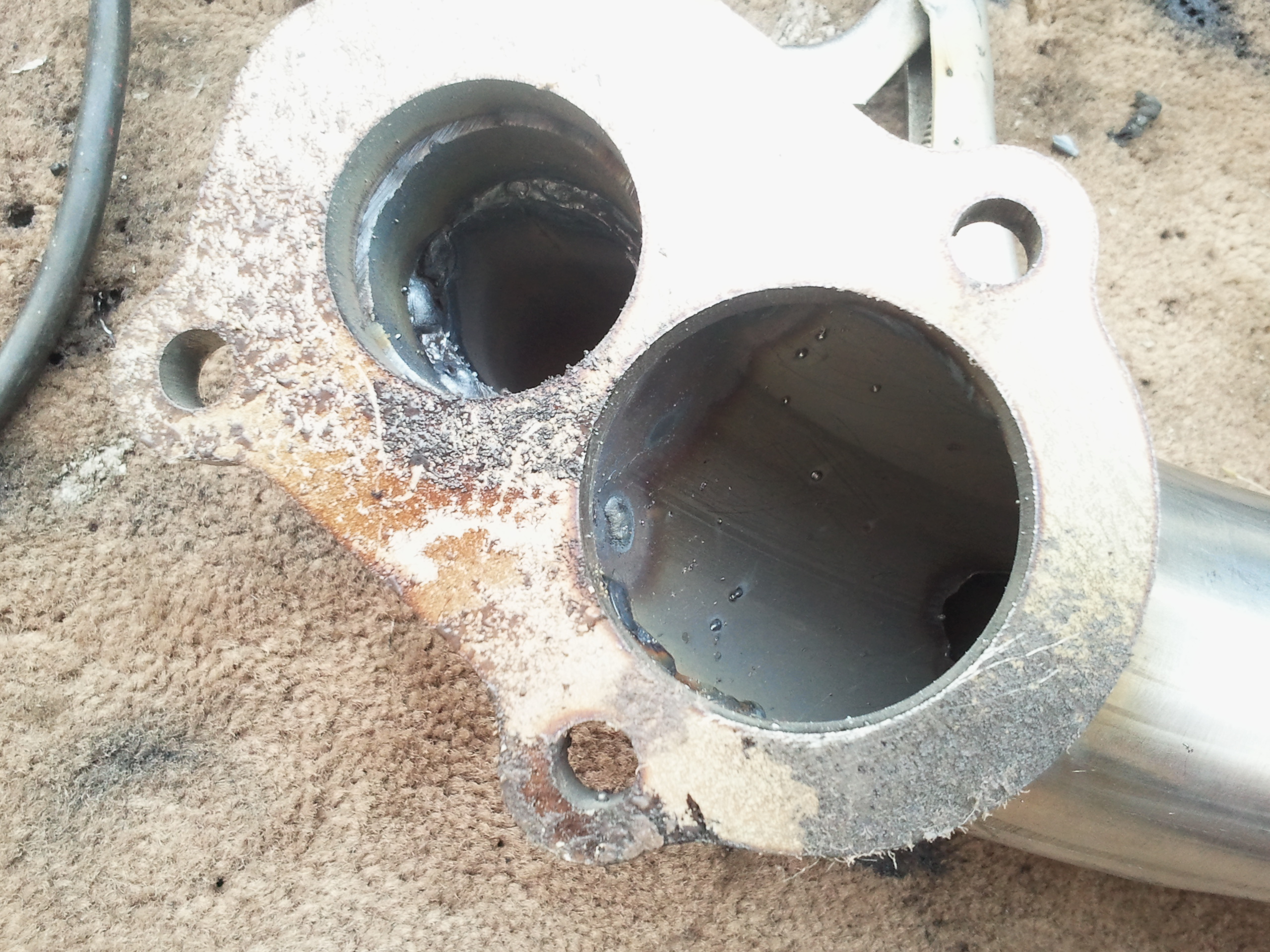

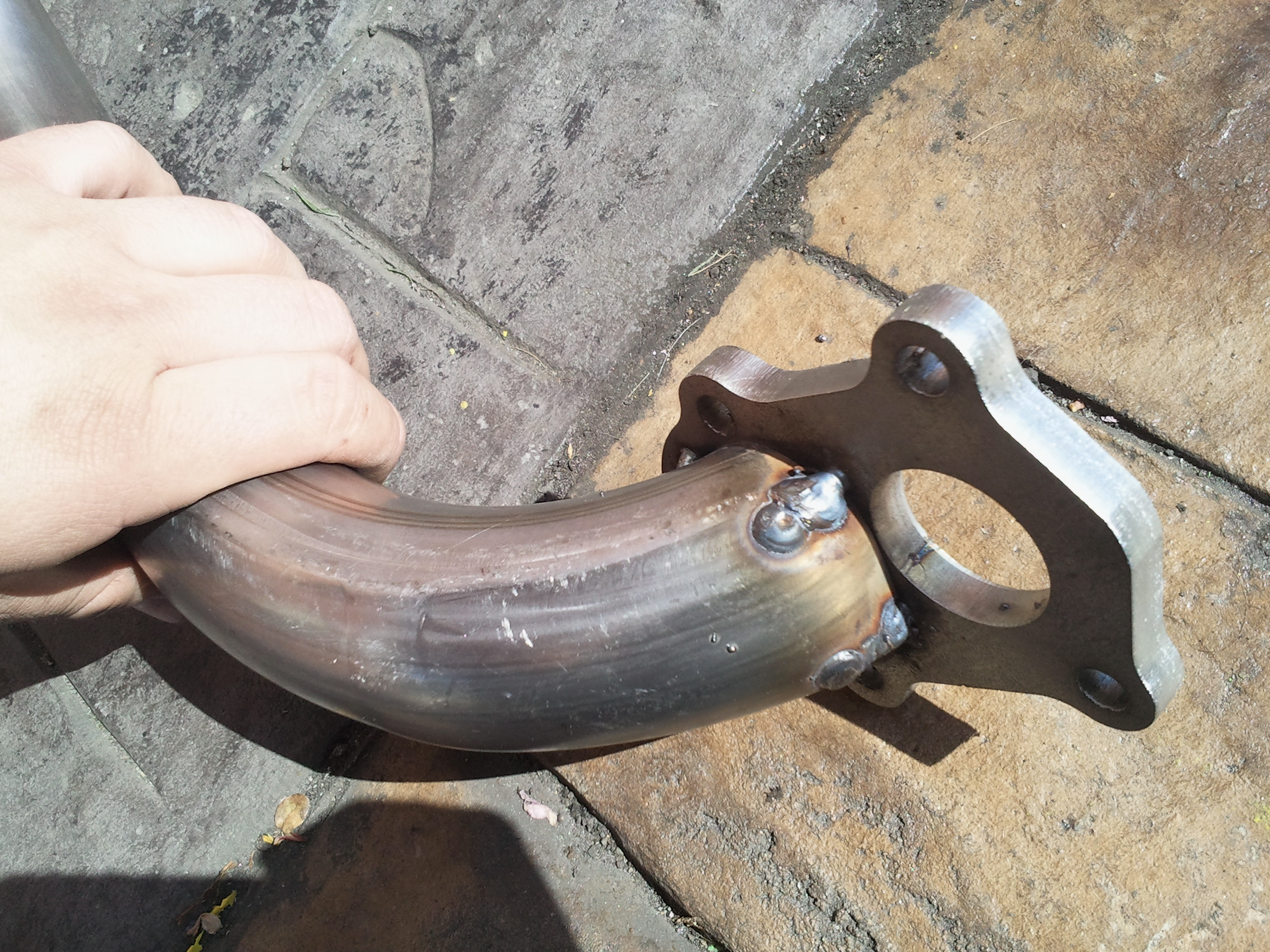

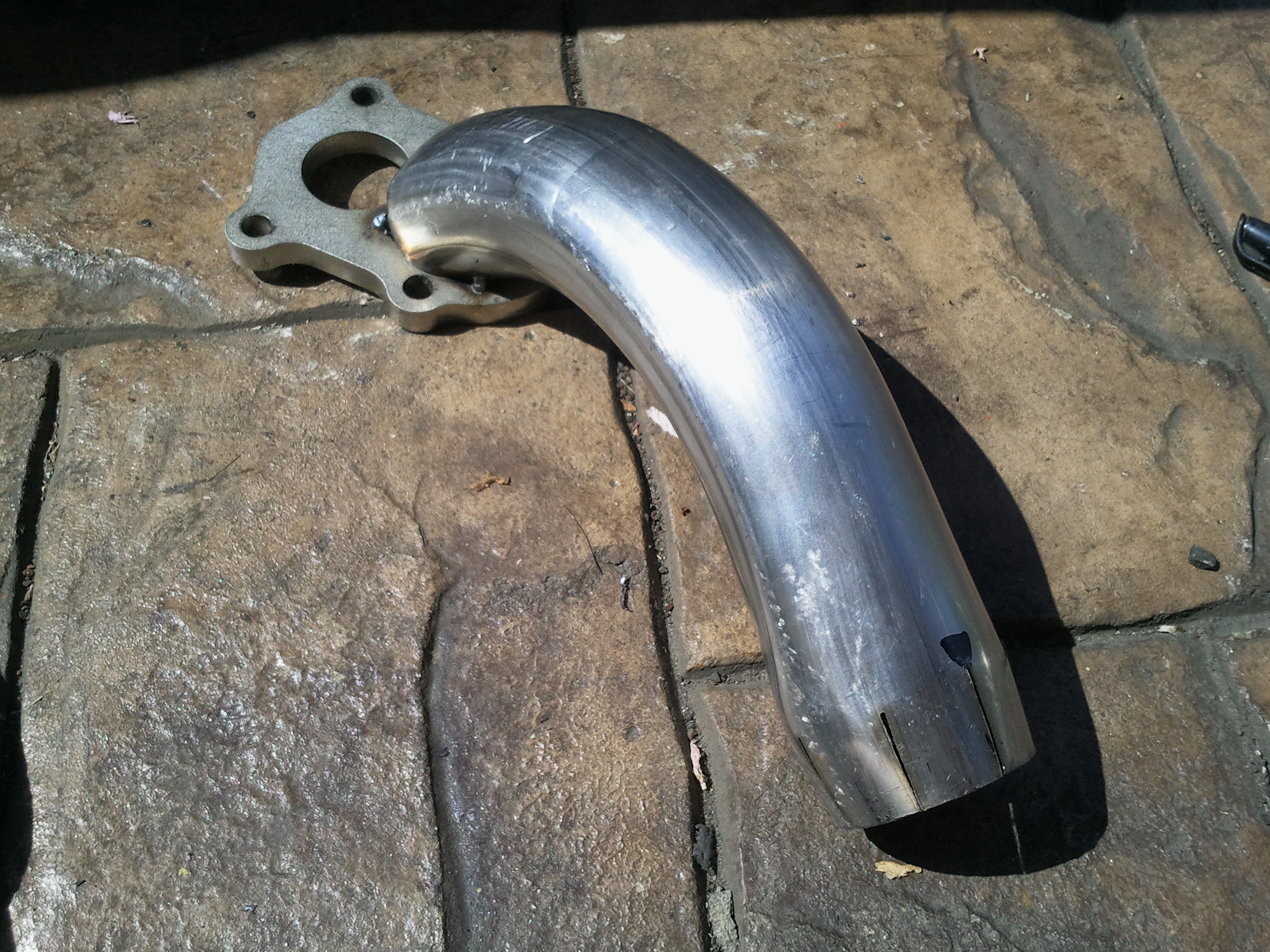

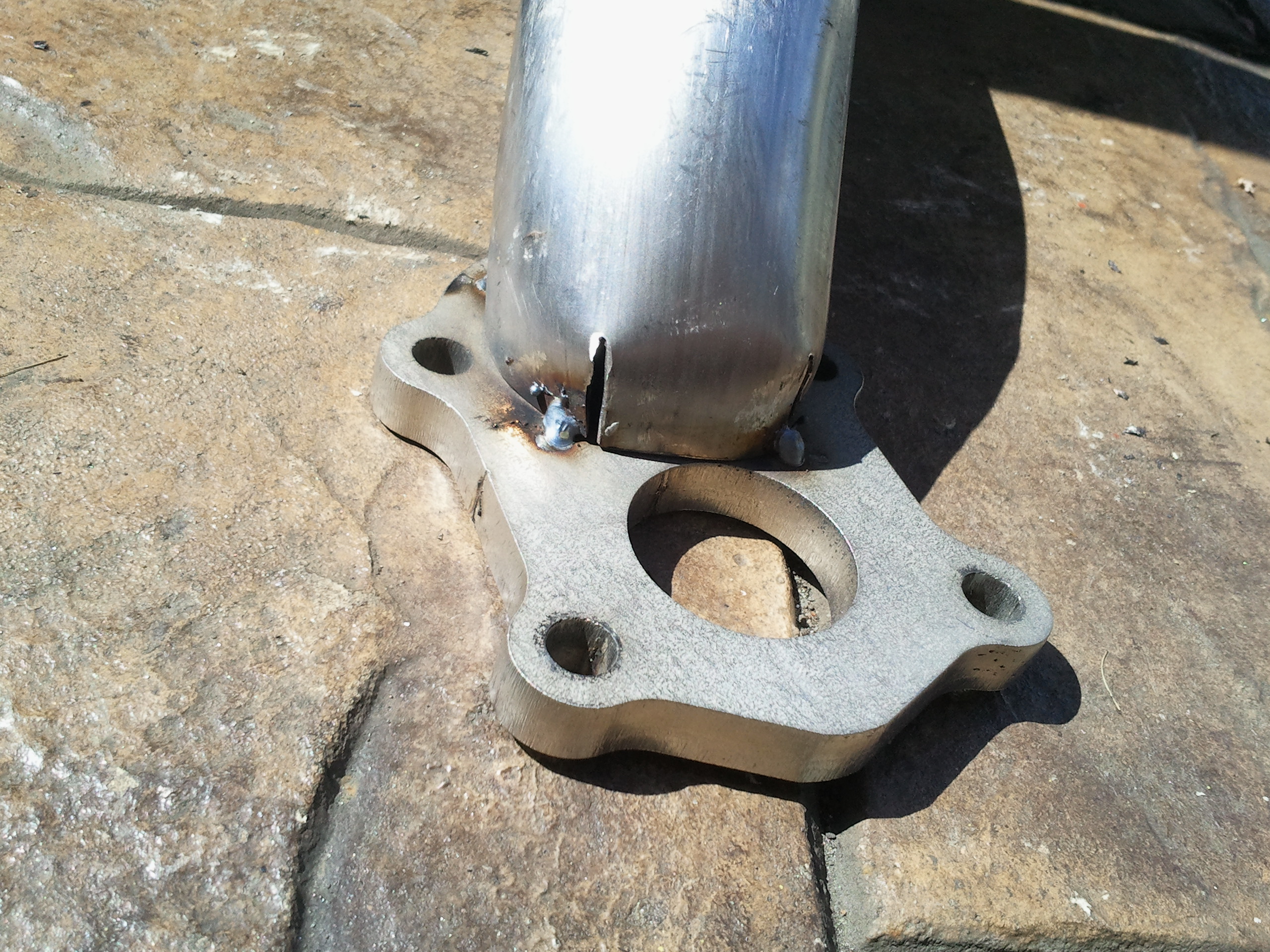

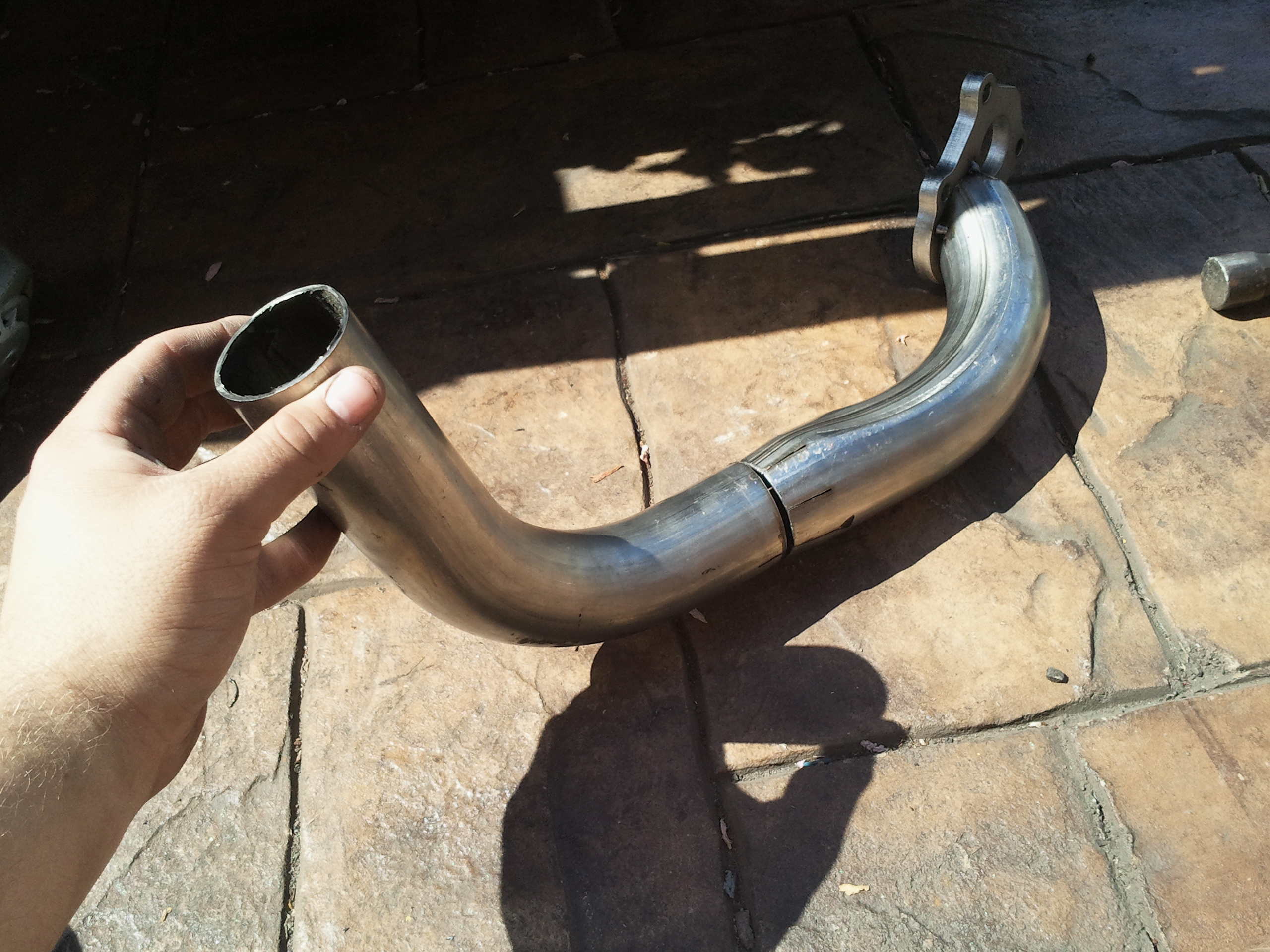

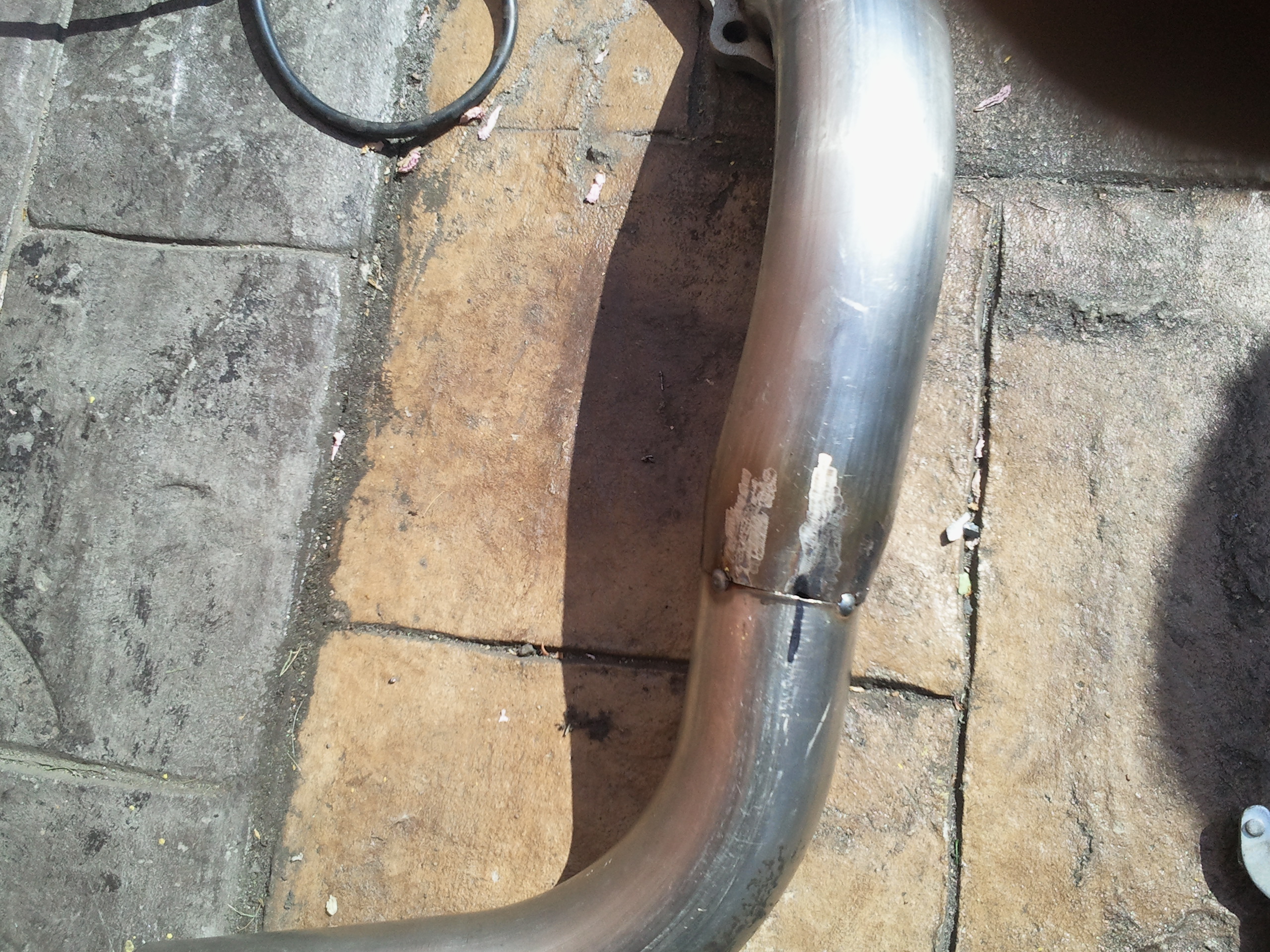

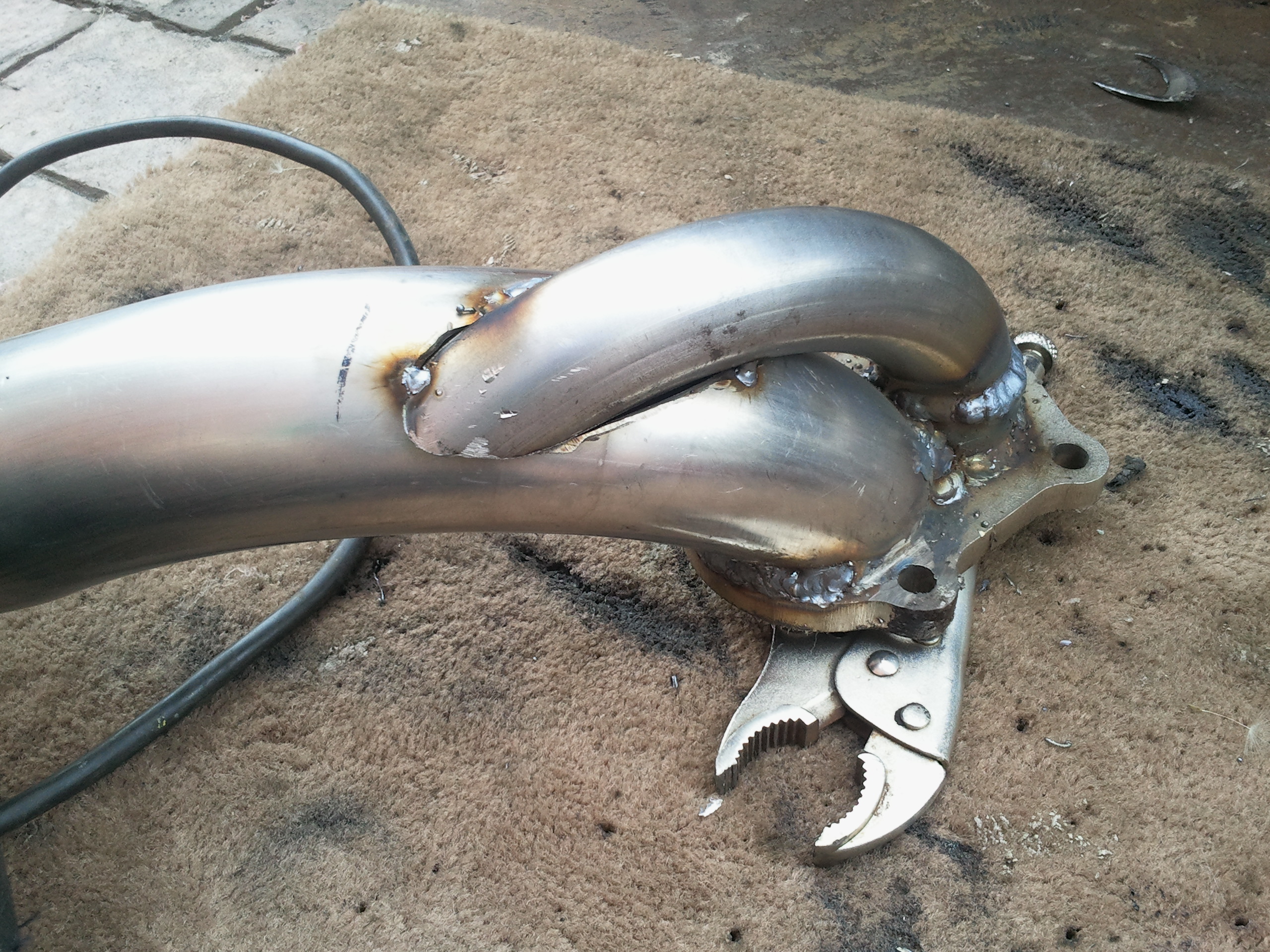

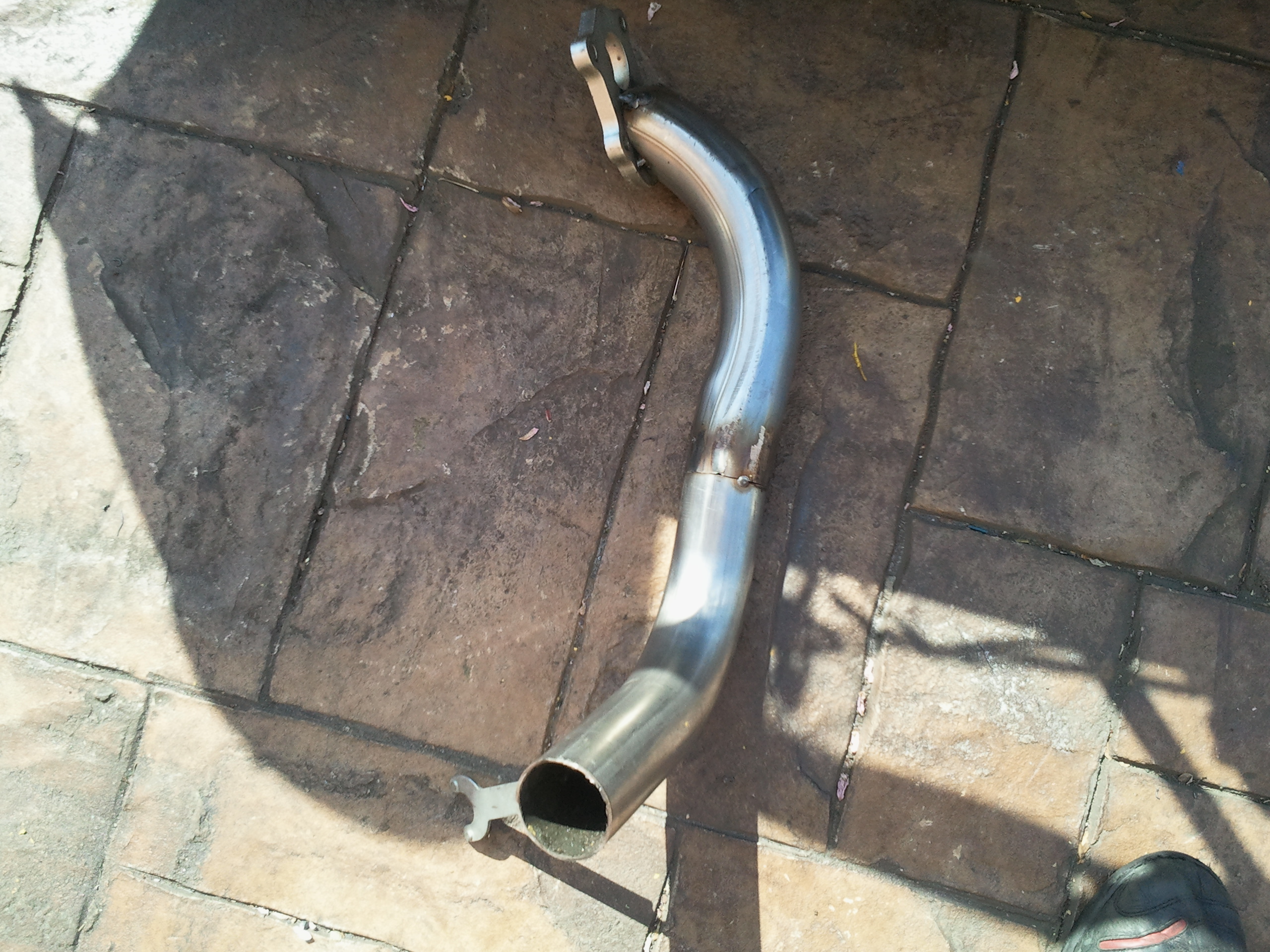

downpipe is done

Attachments:

1.51mb

1.59mb

1.48mb

1.48mb

Yes i moved to the darkside

Instagram @jdm_brett

.

Attachments:

1.54mb

1.52mb

1.38mb

1.48mb

Yes i moved to the darkside

Instagram @jdm_brett

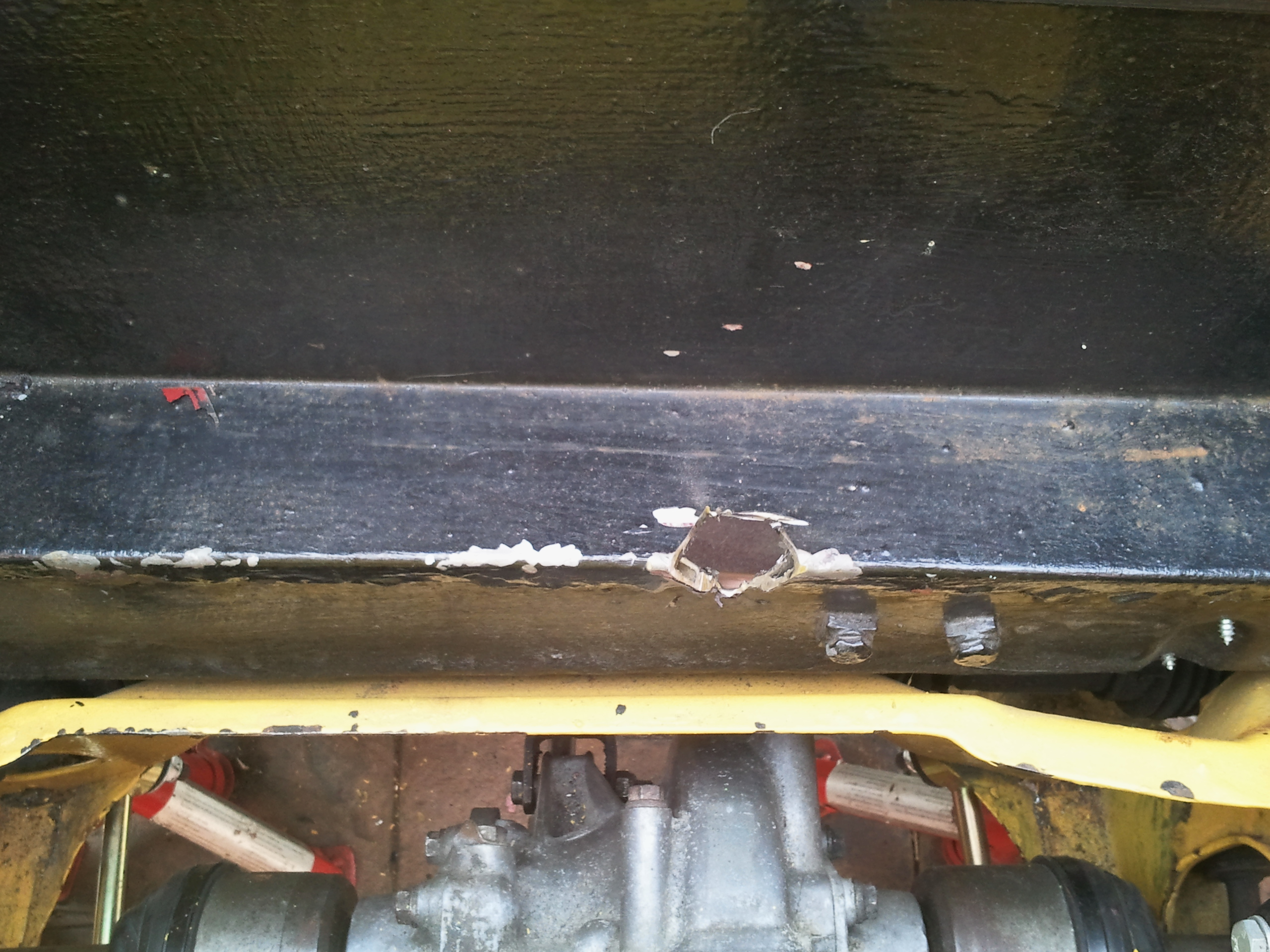

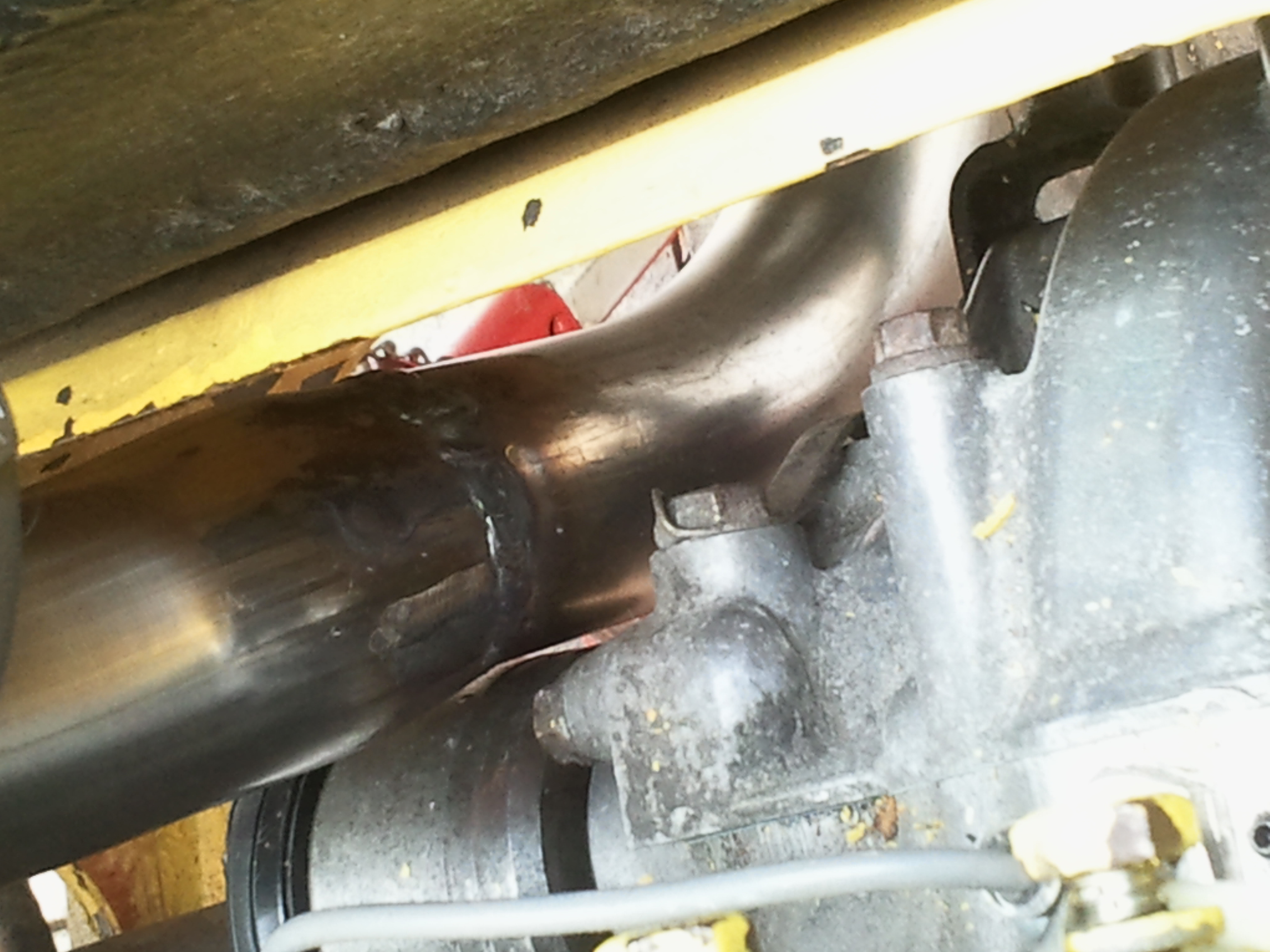

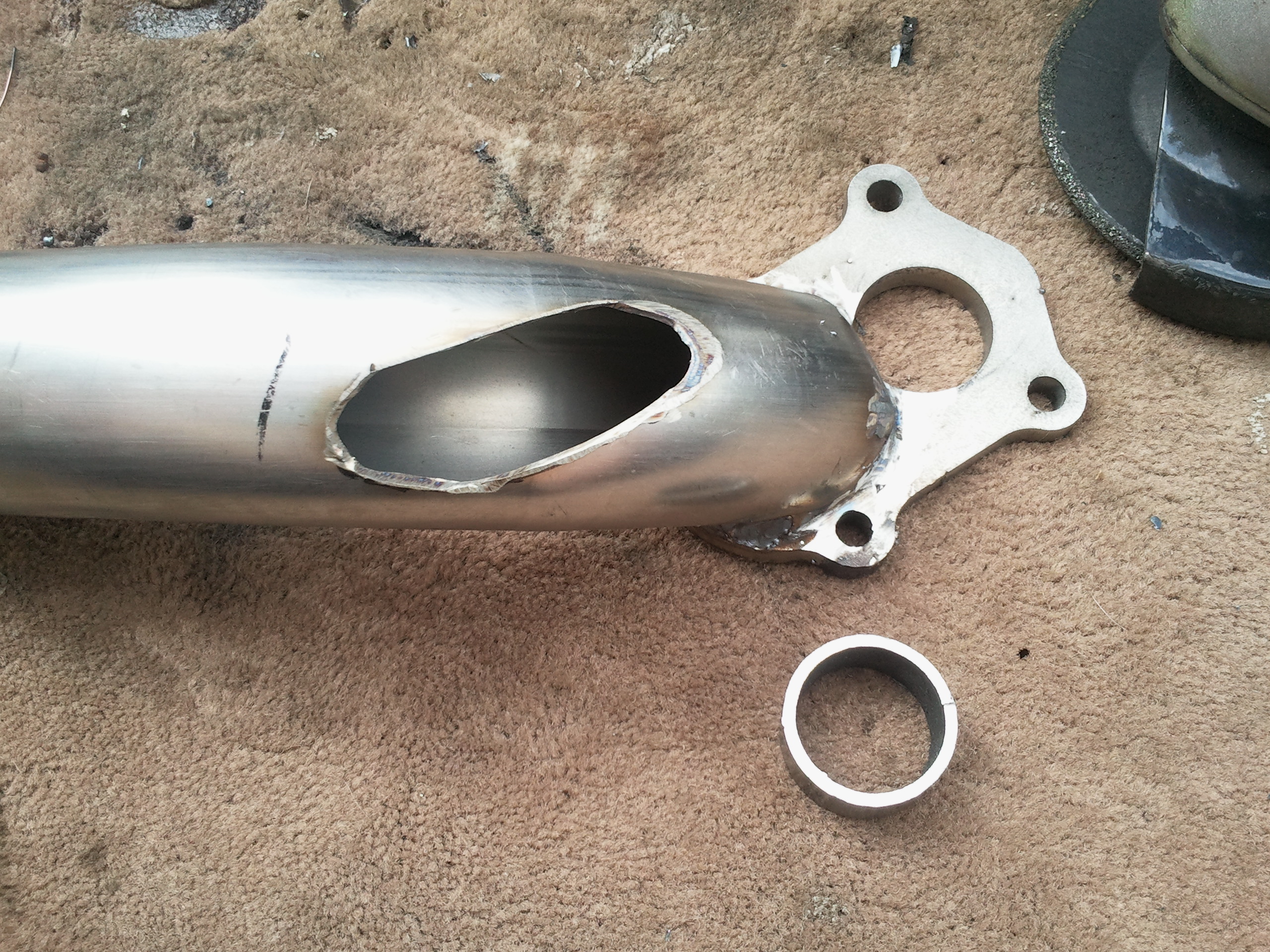

the clearance on the pot joint, well its tight

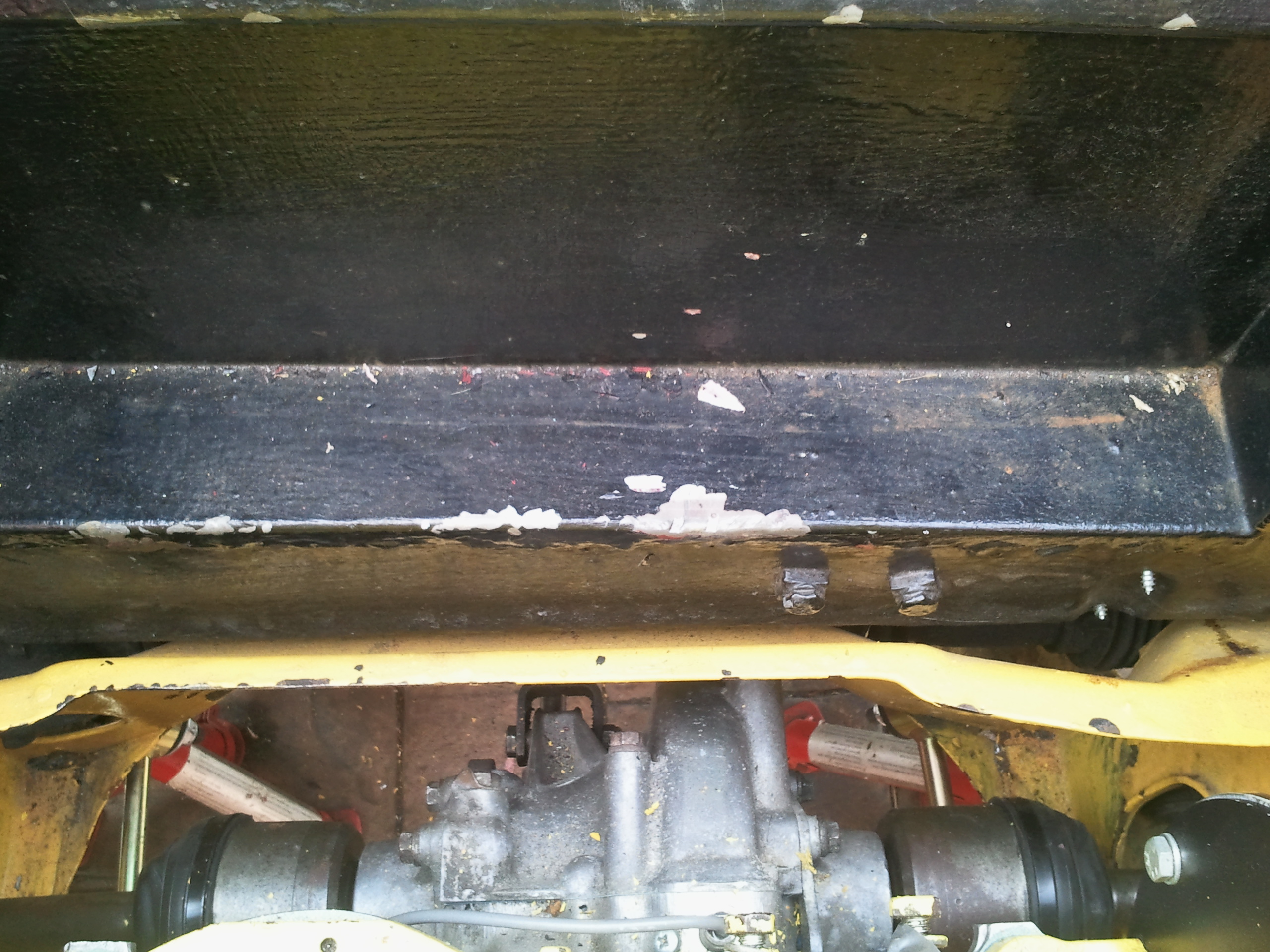

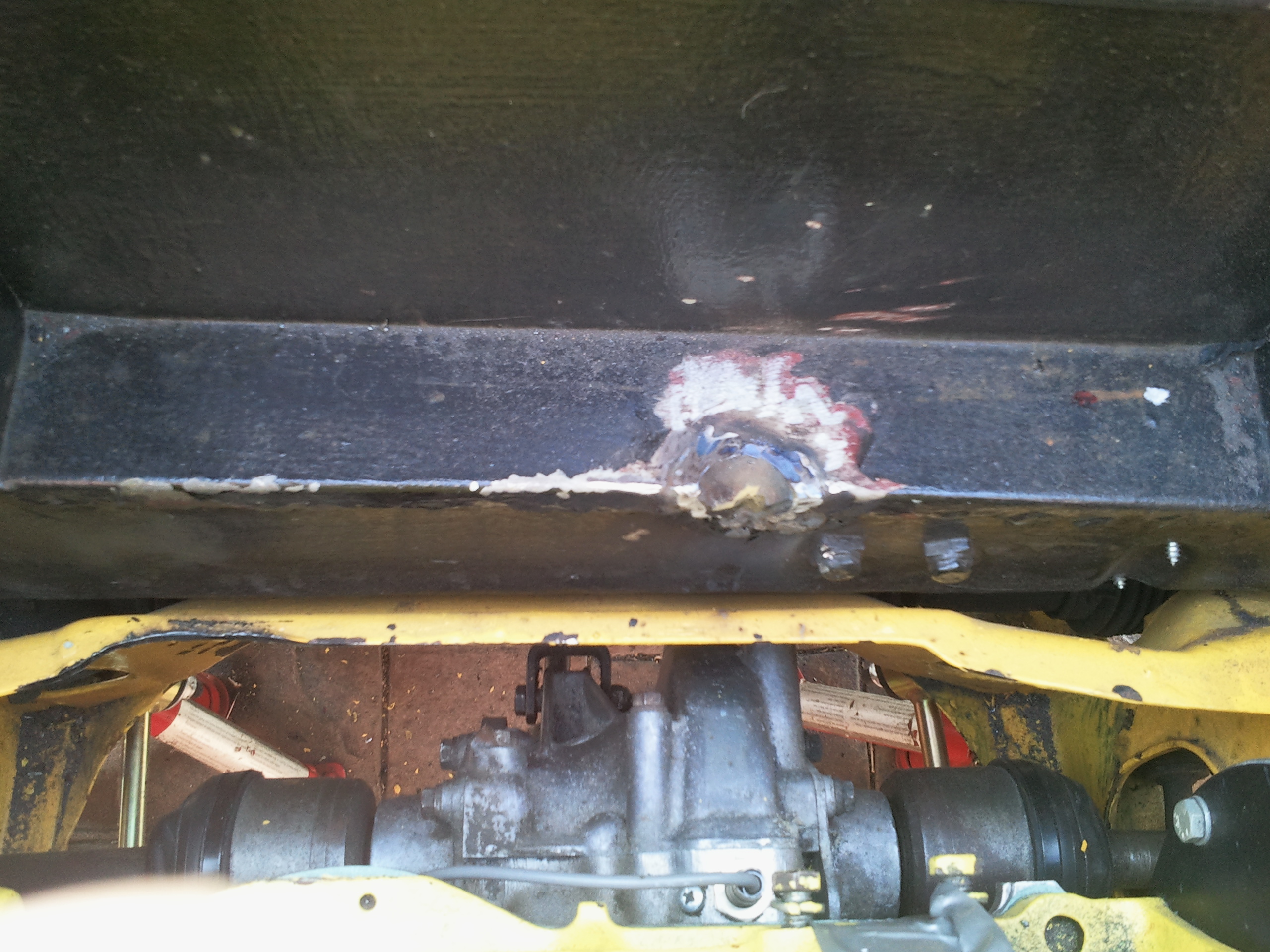

and the turbo hit the bulkheadbox and a big hammer did not sort it

Attachments:

1.49mb

1.53mb

1.23mb

1.33mb

Edited by Brett on 28th Apr, 2011.

Yes i moved to the darkside

Instagram @jdm_brett

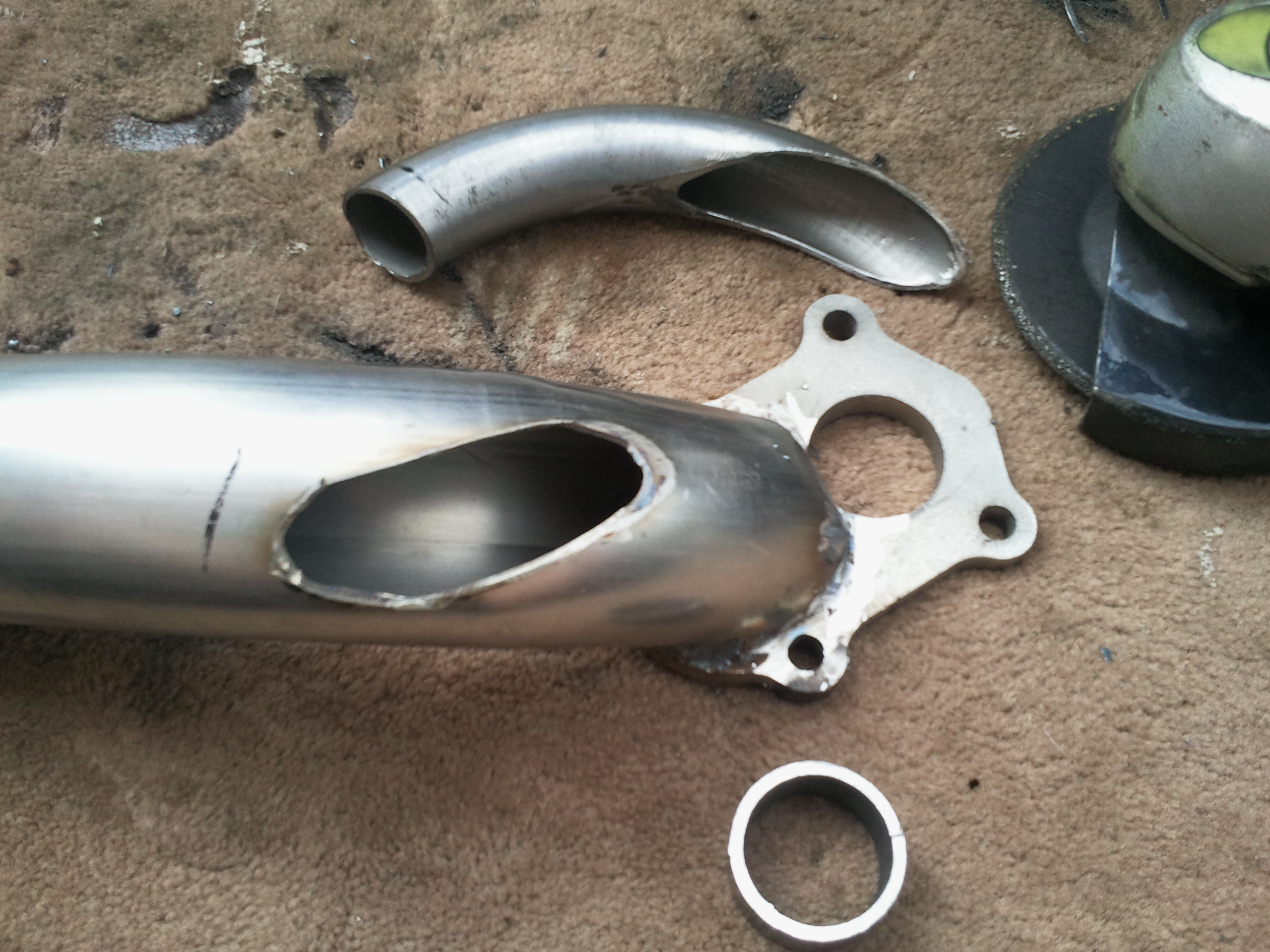

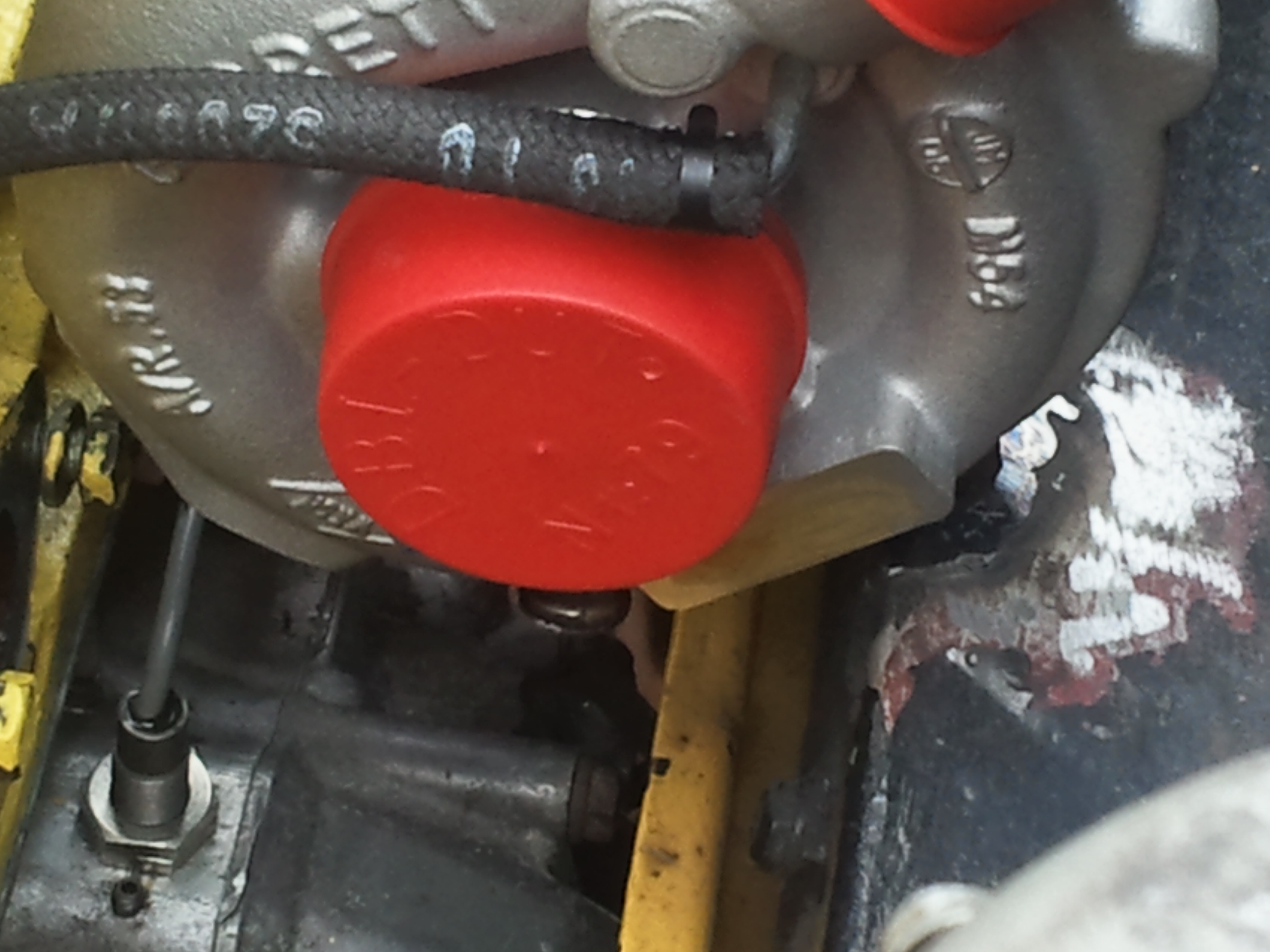

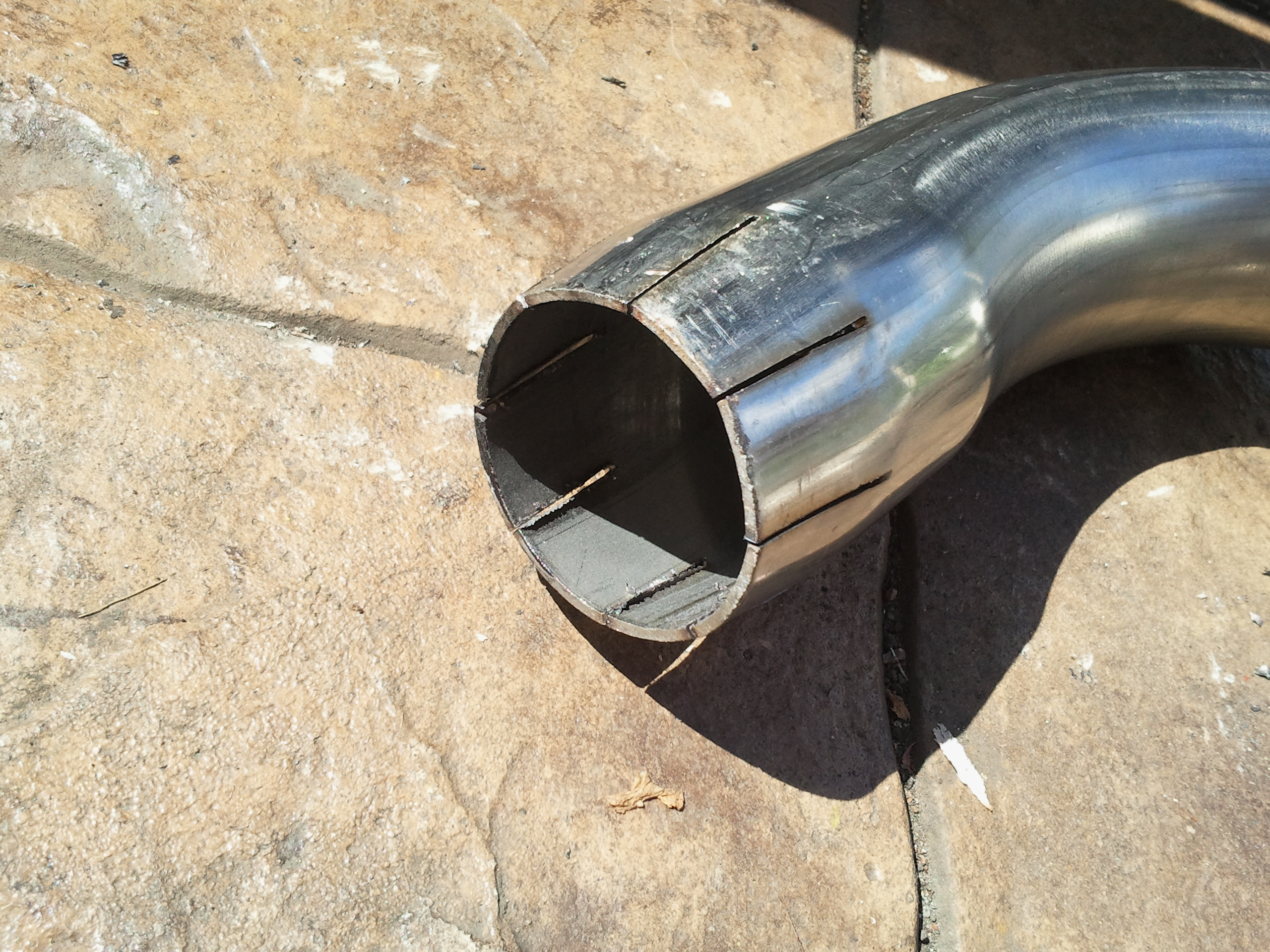

half a section of pipe sorted the clearance on the turbo compressor

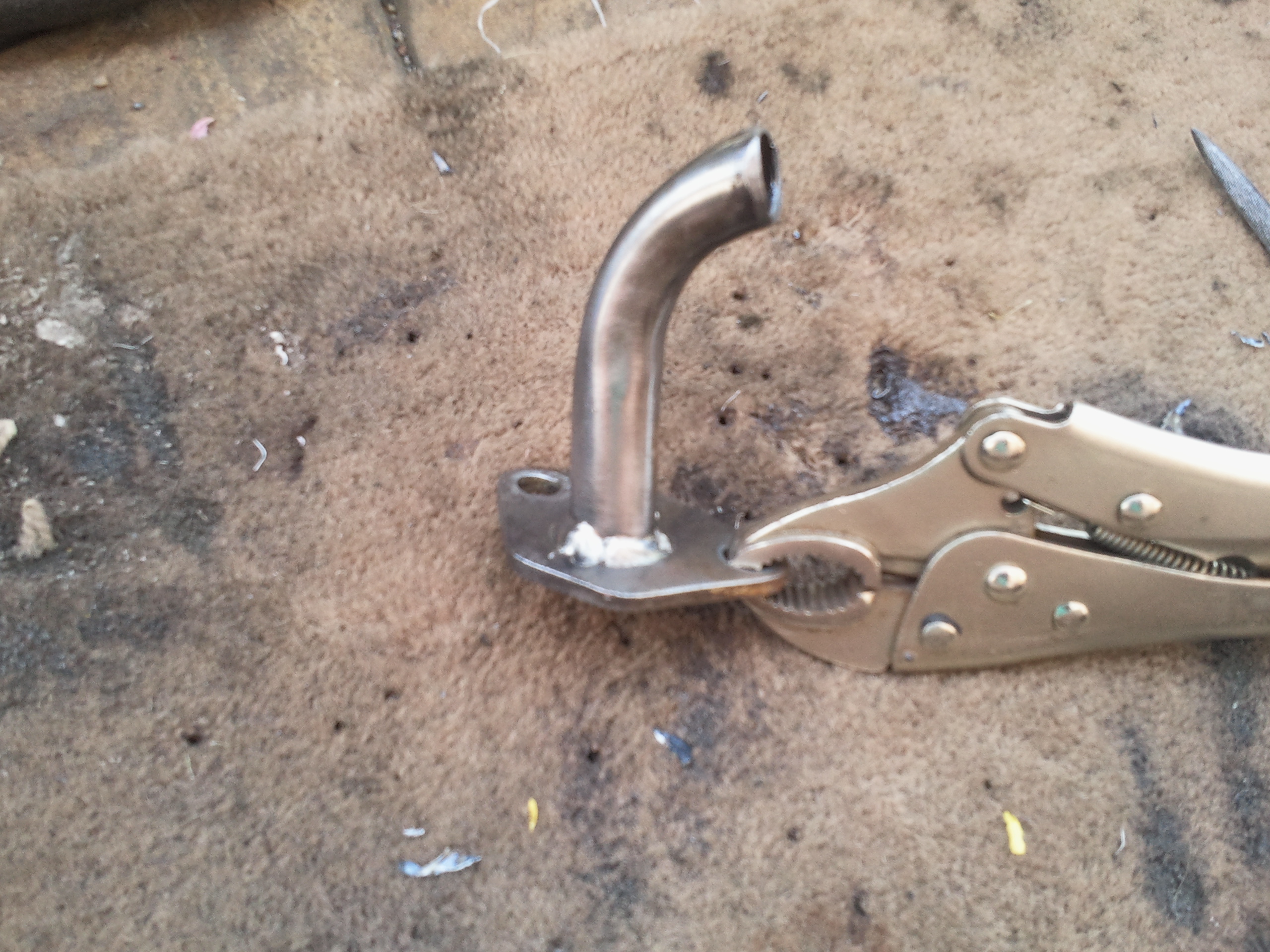

a cheeky oil return pipe made from an oil pick up pipe

Attachments:

1.59mb

1.34mb

1.43mb

1.56mb

Edited by Brett on 28th Apr, 2011.

Yes i moved to the darkside

Instagram @jdm_brett

all it needs now is 10 mins with a die grinder and one weld dressing back

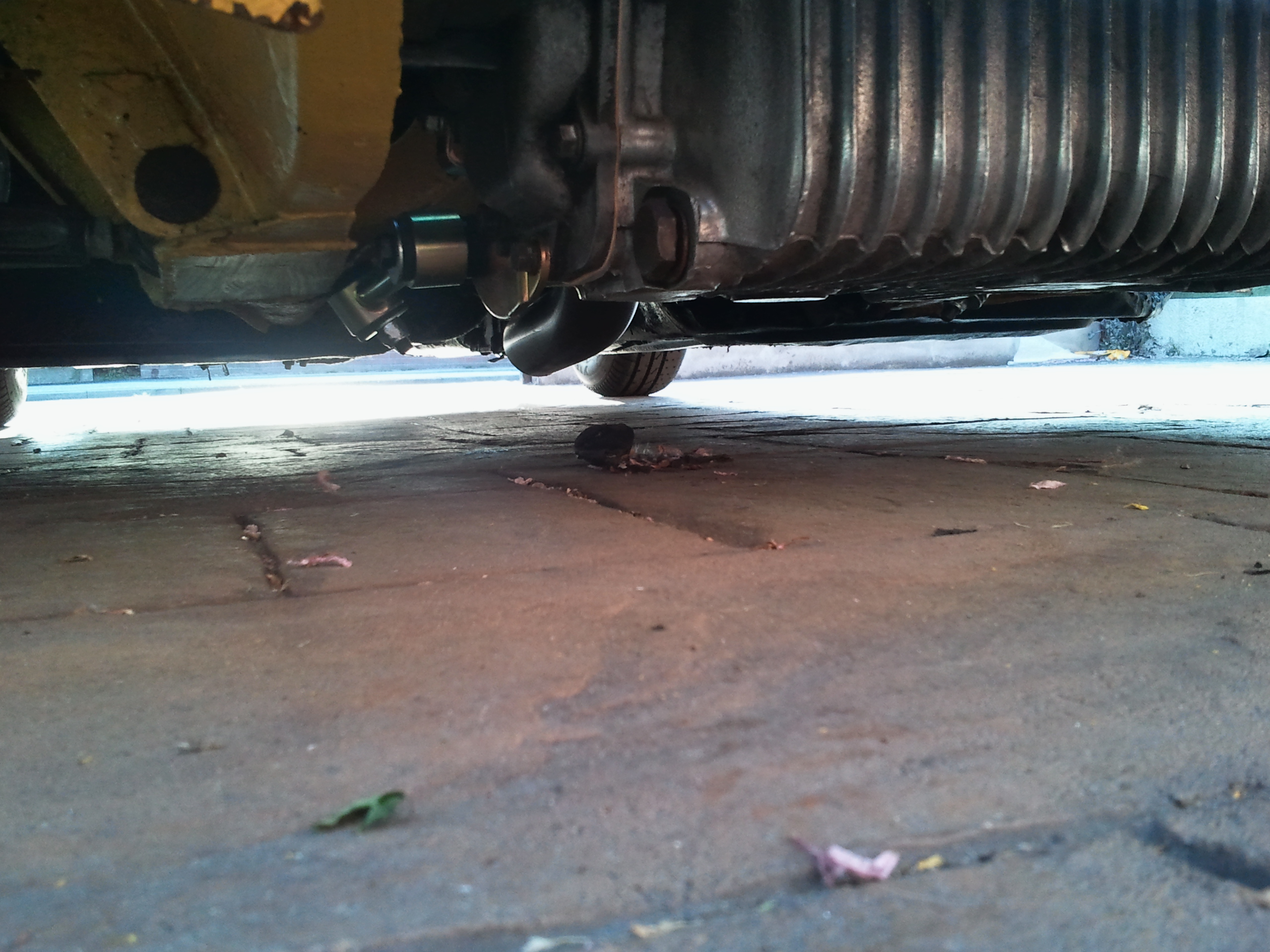

i did have 2 inch ground clearance i now have 1 and 3/4 inch

and i think the best bit the whole lot can be fitted and removed without moving the engine

Attachments:

1.53mb

1.51mb

Edited by Brett on 28th Apr, 2011.

Yes i moved to the darkside

Instagram @jdm_brett

Not long until the first fire up then??
That downpipe looks the nuts mate

2012 Avon class c 2nd place 13.8 @98mph

fit the rad and buy an oil feed pipe for the gt20 then it can turn over :)
